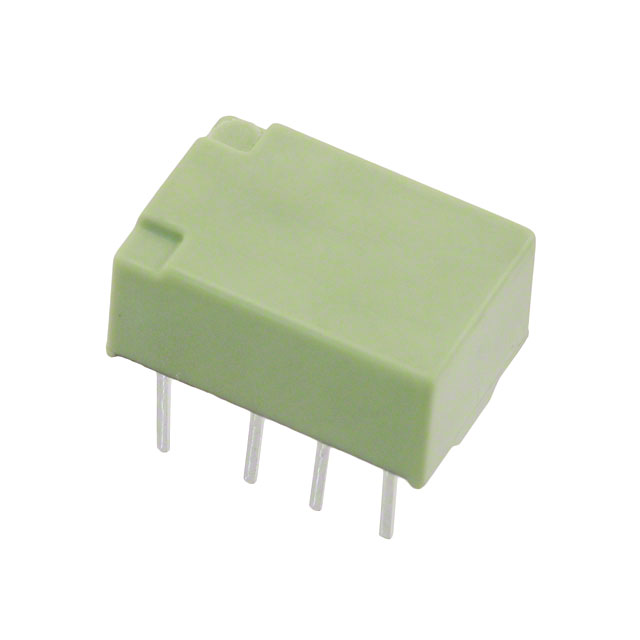

AGQ21012

Active

Panasonic Electric Works

RELAY TELECOM DPDT 2A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStandards Chart Datasheet +2

AGQ21012

Active

Panasonic Electric Works

RELAY TELECOM DPDT 2A 12V

Deep-Dive with AI

DocumentsStandards Chart Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AGQ21012

Approval Agency	BSI, cURus
Coil Current	8.3 mA
Coil Resistance	1440 Ohms
Coil Type	Latching, Single Coil
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	125 VA, 110 W
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Operate Time	4 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	4 ms
Switching Voltage	110 VDC, 125 VAC
Termination Style	PC Pin

AGQ210 Series

Part	Contact Rating (Current)	Coil Type	Seal Rating	Contact Form	Coil Voltage	Contact Material	Operate Time	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Release Time	Load - Max Switching	Relay Type	Coil Current	Must Operate Voltage	Approval Agency	Switching Voltage
Panasonic Electric Works AGQ210S1HY	2 A	Latching Single Coil	Sealed - Fully	DPDT (2 Form C)	1.5 VDC	Gold (Au) Silver Palladium (AgPd)	4 ms	Surface Mount	Gull Wing	85 °C	-40 °C	22.5 Ohms	4 ms	110 W 125 VA	General Purpose	66.7 mA	1.13 VDC	BSI cURus	110 VDC 125 VAC
Panasonic Electric Works AGQ210S1H	2 A	Latching Single Coil		DPDT (2 Form C)	1.5 VDC	Gold (Au) Silver Palladium (AgPd)	4 ms	Surface Mount	Gull Wing	85 °C	-40 °C	22.5 Ohms	4 ms	110 W 125 VA	Telecom	66.7 mA	1.13 VDC	BSI cURus	110 VDC 125 VAC
Panasonic Electric Works AGQ210A4HW	2 A	Latching Single Coil	Sealed - Fully	DPDT (2 Form C)	4.5 VDC	Gold (Au) Silver Palladium (AgPd)	4 ms	Surface Mount	Gull Wing	85 °C	-40 °C	202.5 Ohms	4 ms	110 W 125 VA	General Purpose	22.2 mA	3.38 VDC	BSI cURus	110 VDC 125 VAC
Panasonic Electric Works AGQ210A12W	2 A	Latching Single Coil	Sealed - Fully	DPDT (2 Form C)	12 VDC	Gold (Au) Silver Palladium (AgPd)	4 ms	Surface Mount	Gull Wing	85 °C	-40 °C	1440 Ohms	4 ms	110 W 125 VA	General Purpose	8.3 mA	9 VDC	BSI cURus	110 VDC 125 VAC
Panasonic Electric Works AGQ210A1HZ	2 A	Latching Single Coil		DPDT (2 Form C)	1.5 VDC	Gold (Au) Silver Palladium (AgPd)	4 ms	Surface Mount	Gull Wing	85 °C	-40 °C	22.5 Ohms	4 ms	110 W 125 VA	Telecom	66.7 mA	1.13 VDC	BSI cURus	110 VDC 125 VAC
Panasonic Electric Works AGQ210S06Z	2 A	Latching Single Coil		DPDT (2 Form C)		Gold (Au) Silver Palladium (AgPd)	4 ms	Surface Mount	Gull Wing	85 °C	-40 °C	257 Ohms	4 ms	110 W 125 VA	Telecom	16.7 mA	4.5 VDC	BSI cURus	110 VDC 125 VAC
Panasonic Electric Works AGQ210S09Z	2 A	Latching Single Coil		DPDT (2 Form C)	9 VDC	Gold (Au) Silver Palladium (AgPd)	4 ms	Surface Mount	Gull Wing	85 °C	-40 °C	810 Ohms	4 ms	110 W 125 VA	Telecom	11.1 mA	6.75 VDC	BSI cURus	110 VDC 125 VAC
Panasonic Electric Works AGQ21012	2 A	Latching Single Coil		DPDT (2 Form C)	12 VDC	Gold (Au) Silver Palladium (AgPd)	4 ms	Through Hole	PC Pin	85 °C	-40 °C	1440 Ohms	4 ms	110 W 125 VA	Telecom	8.3 mA	9 VDC	BSI cURus	110 VDC 125 VAC
Panasonic Electric Works AGQ210S03W	2 A	Latching Single Coil	Sealed - Fully	DPDT (2 Form C)		Gold (Au) Silver Palladium (AgPd)	4 ms	Surface Mount	Gull Wing	85 °C	-40 °C	90 Ohms	4 ms	110 W 125 VA	General Purpose	33.3 mA	2.25 VDC	BSI cURus	110 VDC 125 VAC
Panasonic Electric Works AGQ210A06X	2 A	Latching Single Coil	Sealed - Fully	DPDT (2 Form C)		Gold (Au) Silver Palladium (AgPd)	4 ms	Surface Mount	Gull Wing	85 °C	-40 °C	360 Ohms	4 ms	110 W 125 VA	General Purpose	16.7 mA	4.5 VDC	BSI cURus	110 VDC 125 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	50	$ 4.97
