A05SUR05SUR32W102A

Active

JST Sales America Inc.

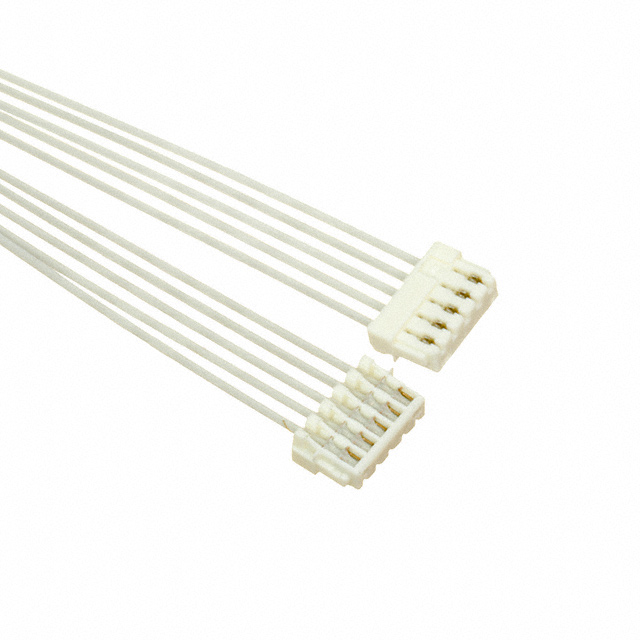

JUMPER 05SUR-32S - 05SUR-32S 4"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 05SUR-32S - 05SUR-32S 4"

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Number of Rows	Connector Type	Length [x]	Length [x]	Length [x]	Cable Termination	Contact Finish	Length	Length	Length	Length
JST Sales America Inc. A05SUR05SUR32W102B	0.8 mm	0.031 in	1	Socket to Socket	4 "	0.333 ft	101.6 mm	IDC	Tin
JST Sales America Inc. A05SUR05SUR32W305A	0.8 mm	0.031 in	1	Socket to Socket Reversed				IDC	Tin	1 ft	304.8 mm
JST Sales America Inc. A05SUR05SUR32W51B	0.8 mm	0.031 in	1	Socket to Socket				IDC	Tin	0.167 '	50.8 mm	2 "
JST Sales America Inc. A05SUR05SUR32W102A	0.8 mm	0.031 in	1	Socket to Socket Reversed	4 "	0.333 ft	101.6 mm	IDC	Tin
JST Sales America Inc. A05SUR05SUR32W305B	0.8 mm	0.031 in	1	Socket to Socket				IDC	Tin	1 ft	304.8 mm
JST Sales America Inc. A05SUR05SUR32W203B	0.8 mm	0.031 in	1	Socket to Socket				IDC	Tin	0.667 ft	203.2 mm	8 in
JST Sales America Inc. A05SUR05SUR32W152B	0.8 mm	0.031 in	1	Socket to Socket				IDC	Tin		152.4 mm	6 "	0.5 '
JST Sales America Inc. A05SUR05SUR32W152A	0.8 mm	0.031 in	1	Socket to Socket Reversed				IDC	Tin		152.4 mm	6 "	0.5 '
JST Sales America Inc. A05SUR05SUR32W203A	0.8 mm	0.031 in	1	Socket to Socket Reversed				IDC	Tin	0.667 ft	203.2 mm	8 in
JST Sales America Inc. A05SUR05SUR32W51A	0.8 mm	0.031 in	1	Socket to Socket Reversed				IDC	Tin	0.167 '	50.8 mm	2 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.333' (101.60mm, 4.00")
