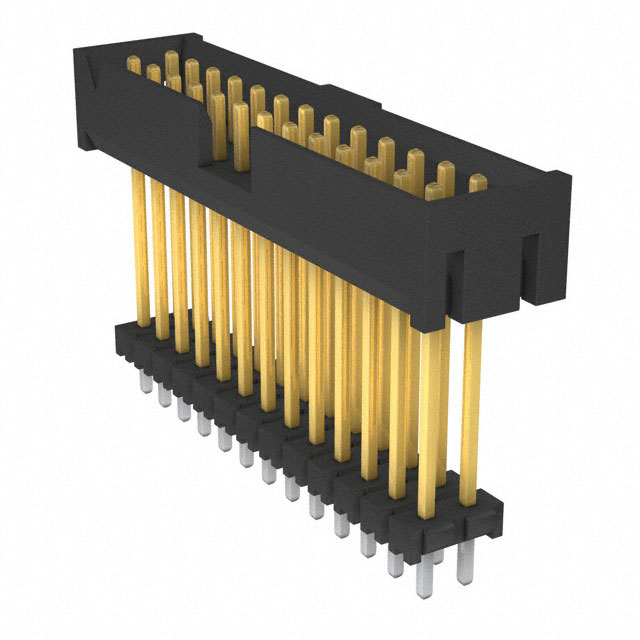

ZLTMM-113-74-S-D-588
ActiveSamtec Inc.
2 TIN 2MM -55℃~+125℃ PHOSPHOR BRONZE STRAIGHT PLUGIN WIRE TO BOARD CONNECTOR ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZLTMM-113-74-S-D-588 |
|---|---|
| Connector Type | Elevated, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Mating | 3.05 mm |
| Contact Length - Mating | 0.12 in |
| Contact Length - Post | 0.09 " |
| Contact Length - Post | 2.29 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 0.588 in |
| Insulation Height | 14.94 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.673 in |
| Overall Contact Length | 17.09 mm |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
ZLTMM-113 Series
| Part | Features | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Mounting Type | Connector Type | Insulation Height | Insulation Height | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Rows | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Contact Finish - Mating | Termination | Pitch - Mating [x] | Pitch - Mating [x] | Overall Contact Length | Overall Contact Length | Contact Material | Number of Positions | Insulation Material | Contact Length - Post | Contact Length - Post | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Insulation Height [custom] | Insulation Height [custom] | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Keying Slot | All | 3.05 mm | 0.12 in | Through Hole | Elevated Header | 0.588 in | 14.94 mm | Square | -55 °C | 125 °C | Male Pin | 2 | Tin | 0.079 in | 2 mm | Push-Pull | Gold | Solder | 0.079 in | 2 mm | 0.673 in | 17.09 mm | Phosphor Bronze | 26 | Nylon Polyamide (PA) | 0.09 " | 2.29 mm | Black | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | ||||
Samtec Inc. | Keying Slot | All | 3.05 mm | 0.12 in | Through Hole | Elevated Header | Square | -55 °C | 125 °C | Male Pin | 2 | Tin | 0.079 in | 2 mm | Push-Pull | Gold | Solder | 0.079 in | 2 mm | 0.476 in | 12.09 mm | Phosphor Bronze | 26 | Nylon Polyamide (PA) | 0.151 in | 3.84 mm | Black | 3 µin | 0.076 µm | Shrouded - 4 Wall | 0.35 in | 8.89 mm | ||||
Samtec Inc. | Keying Slot | All | 3.05 mm | 0.12 in | Through Hole | Elevated Header | 0.766 in | 19.46 mm | Square | -55 °C | 125 °C | Male Pin | 2 | Tin | 0.079 in | 2 mm | Push-Pull | Gold | Solder | 0.079 in | 2 mm | 0.851 in | 21.62 mm | Phosphor Bronze | 26 | Nylon Polyamide (PA) | Black | 3 µin | 0.076 µm | Shrouded - 4 Wall | 1.52 mm | 0.06 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ZLTMM-113 Series
Connector Header Through Hole 26 position 0.079" (2.00mm)
