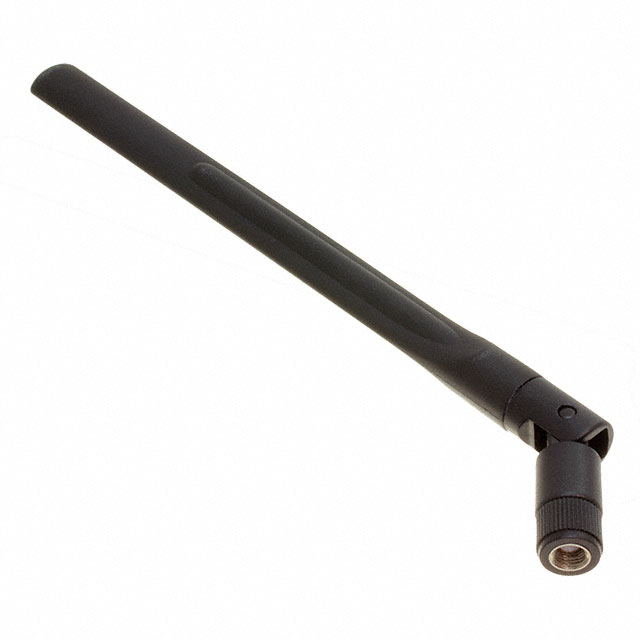

T1561AH-2.4/5.X-S
ActiveNearson Inc.
FLEXABLE WHIP ANTENNA FOR 2.4GHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T1561AH-2.4/5.X-S
ActiveNearson Inc.
FLEXABLE WHIP ANTENNA FOR 2.4GHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T1561AH-2.4/5.X-S |
|---|---|
| Antenna Type | Tilt, Whip |
| Frequency (Center/Band) | 2.4417 GHz, 5.5 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.85 GHz, 2.4835 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz |
| Gain | 5 dBi |
| Height (Max) [Max] | 198 mm |
| Height (Max) [Max] | 7.795 in |
| Ingress Protection | IP65 |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Termination | RP-SMA |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.18 | |
| 10 | $ 16.96 | |||
| 25 | $ 15.36 | |||
| 100 | $ 13.58 | |||
| 250 | $ 12.72 | |||
| 500 | $ 12.20 | |||
Description
General part information
T1561AH Series
RF ANTENNA Whip, Tilt RP-SMA Connector Mount
