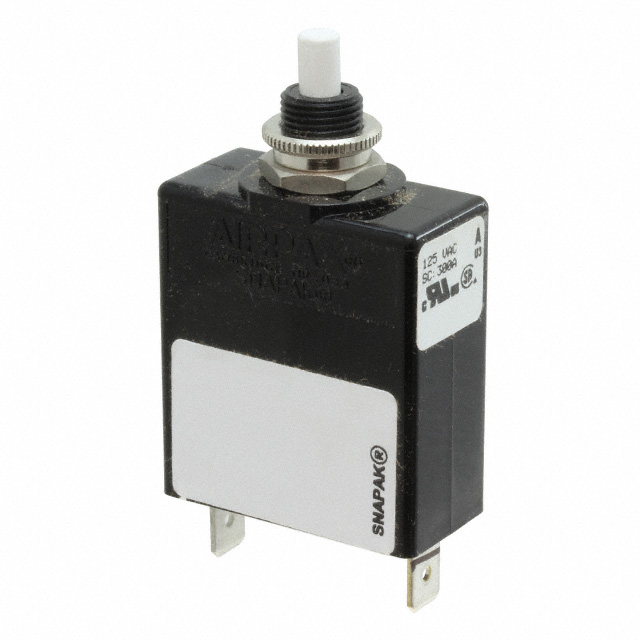

PR11-62-20.0A-XX-U
ActiveSensata-Airpax
CIR BRKR MAG-HYDR 20A PUSH-RESET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR11-62-20.0A-XX-U
ActiveSensata-Airpax
CIR BRKR MAG-HYDR 20A PUSH-RESET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR11-62-20.0A-XX-U |
|---|---|
| Actuator Type | Push to Reset |
| Breaker Type | Magnetic (Hydraulic Delay) |
| Current Rating (Amps) | 20 A |
| Number of Poles | 1 |
PR11-62 Series
| Part | Current Rating (Amps) | Number of Poles | Actuator Type | Breaker Type | Voltage Rating - DC | Illumination | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|
Sensata-Airpax | 7.5 A | 1 | Push to Reset | Magnetic (Hydraulic Delay) | |||
Sensata-Airpax | 3 A | 1 | Push to Reset | Magnetic (Hydraulic Delay) | 65 VDC | None | 250 V |
Sensata-Airpax | 20 A | 1 | Push to Reset | Magnetic (Hydraulic Delay) | |||
Sensata-Airpax | 15 A | 1 | Push to Reset | Magnetic (Hydraulic Delay) | |||
Sensata-Airpax | 1 | Push to Reset | Magnetic (Hydraulic Delay) | ||||
Sensata-Airpax | 1 | Push to Reset | Magnetic (Hydraulic Delay) | ||||
Sensata-Airpax | 1 | Push to Reset | Magnetic (Hydraulic Delay) | ||||
Sensata-Airpax | 20 A | 1 | Push to Reset | Magnetic (Hydraulic Delay) | |||
Sensata-Airpax | 12 A | 1 | Push to Reset | Magnetic (Hydraulic Delay) | 65 VDC | None | 250 V |
Sensata-Airpax | 25 A | 1 | Push to Reset | Magnetic (Hydraulic Delay) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.51 | |
Description
General part information
PR11-62 Series
Circuit Breaker Magnetic (Hydraulic Delay) 20A AC DC Push to Reset Panel Mount
