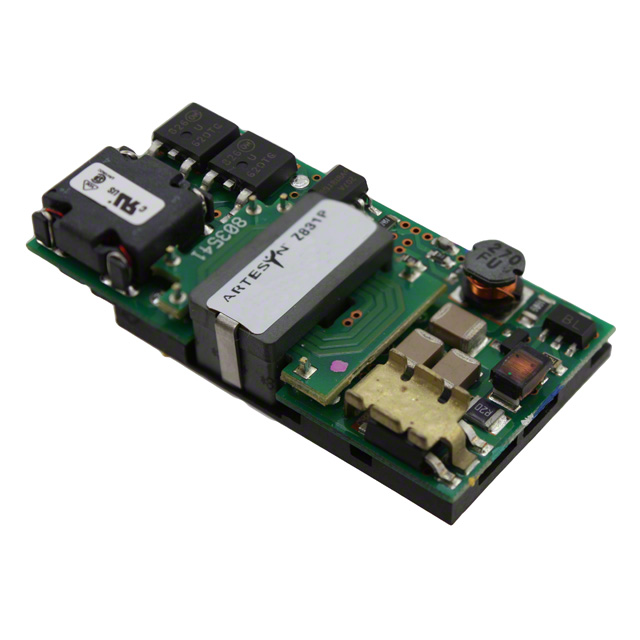

CXA10-48D12J

Active

ARTESYN / Advanced Energy

DC DC CONVERTER +/-12V 10W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

DC DC CONVERTER +/-12V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Applications	Number of Outputs	Voltage - Input (Max) [Max]	Mounting Type	Features	Voltage - Output 2	Type	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max)
ARTESYN / Advanced Energy CXA10-48D12J	6-DIP Module	ITE (Commercial)	2	75 V	Through Hole	OVP SCP UVLO	-12 V	Isolated Module	410 mA	410 mA	-40 °C	70 °C	10 W	83 %	25.4 mm	25.4 mm	10 mm	50.8 mm	2 in	0.39 in	12 V	18 V	1.5 kV
ARTESYN / Advanced Energy CXA10-48D05J	6-DIP Module	ITE (Commercial)	2	75 V	Through Hole	OVP SCP UVLO	-5 V	Isolated Module	1 A		-40 °C	70 °C	10 W	81 %	25.4 mm	25.4 mm	10 mm	50.8 mm	2 in	0.39 in	5 V	18 V	1.5 kV	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 40.06

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 410mA, 410mA 18V - 75V Input
