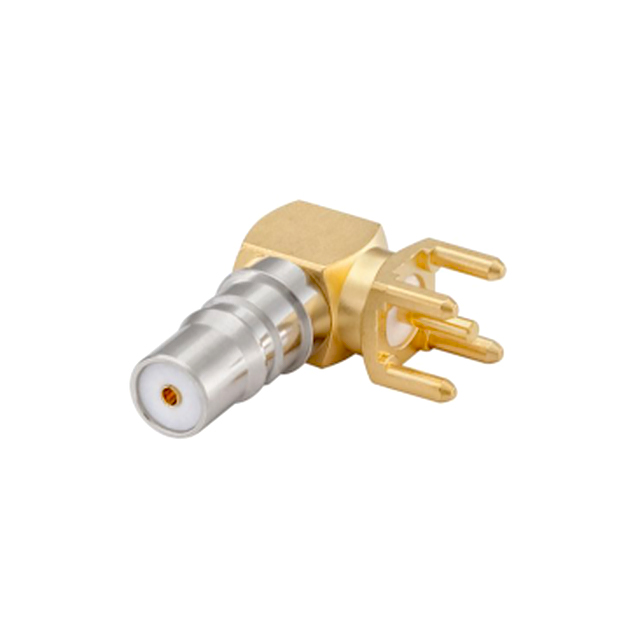

28K201-400N5

Active

Rosenberger

CONN QMA JACK R/A 50OHM PCB

Search across all available documentation for this part.

Active

Rosenberger

CONN QMA JACK R/A 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	28K201-400N5

Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Gold, Silver
Impedance	50 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	480 V

Part	Number of Ports	Fastening Type	Voltage Rating	Connector Type	Housing Color	Body Material	Frequency - Max [Max]	Contact Termination	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Center Contact Material	Dielectric Material	Center Contact Plating	Impedance
Rosenberger 28K201-400N5	1	Snap-On	480 V	Female Socket Jack	Gold Silver	Brass	18 GHz	Solder	Solder	85 °C	-40 °C	Through Hole Right Angle	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 8.36

General part information

QMA Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
