031-204

Active

Amphenol RF

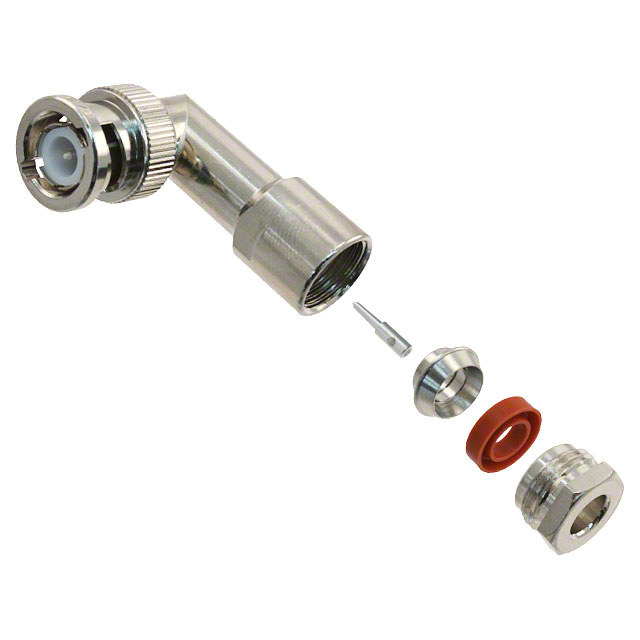

CONN BNC PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	031-204

Body Finish	Nickel
Body Material	Brass
Cable Group	223, 141A, 55A, 142B, 58A, 55B, 142, 58, 58C, 141, 400, 142A, 58B, RG-55
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Clamp, 1 Gasket, 1 Connector, 1 Contact, 1 Braid Clamp
Ingress Protection	Weatherproof
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Number of Ports	Center Contact Material	Ingress Protection	Frequency - Max [Max]	Includes	Fastening Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Housing Color	Connector Type	Mating Cycles	Voltage Rating	Cable Group	Connector Style	Body Finish	Dielectric Material	Center Contact Plating	Impedance	Insertion Loss	Body Material
Amphenol RF 031-204	1	Beryllium Copper Brass	Weatherproof	4 GHz	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket	Bayonet Lock	Clamp	-65 ░C	165 °C	Free Hanging (In-Line) Right Angle	Solder	Silver	Male Pin Plug	500	500 V	141 141A 142 142A 142B 223 400 55A 55B 58 58A 58B 58C RG-55	BNC	Nickel	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms	0.2 dB	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
