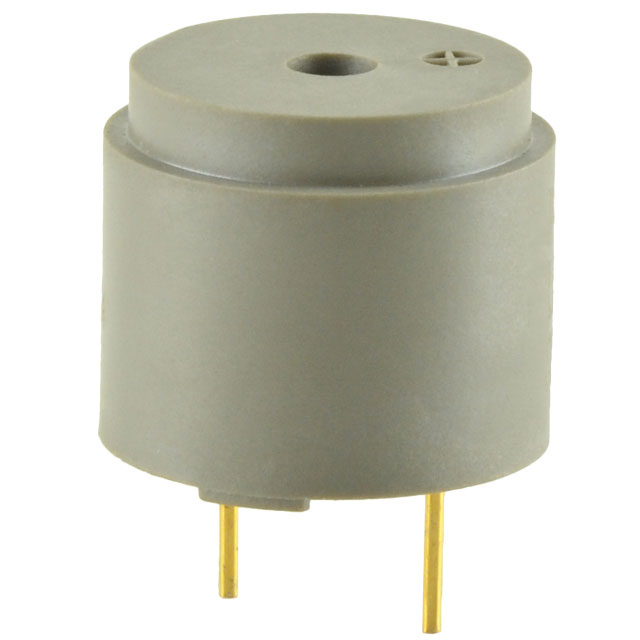

CMI-1614C-120

Active

CUI Devices

BUZZER MAGNETIC 12V 16.00MM TH

Search across all available documentation for this part.

Active

CUI Devices

BUZZER MAGNETIC 12V 16.00MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	CMI-1614C-120

Current - Supply	35 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.2 kHz
Height - Seated (Max) [Max] [z]	0.571 in
Height - Seated (Max) [Max] [z]	14.5 mm
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Port Location	Top
Ratings	Washable
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Sound Pressure Level (SPL)	90 dB
Technology	Magnetic
Termination	PC Pins
Voltage - Rated	12 VDC
Voltage Range [Max]	13 VDC
Voltage Range [Min]	9 V

Part	Technology	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Driver Circuitry	Termination	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Sound Pressure Level (SPL)	Operating Mode	Voltage Range [Max]	Voltage Range [Min]	Port Location	Voltage - Rated	Ratings	Frequency	Mounting Type	Current - Supply
CUI Devices CMI-1614C-120	Magnetic	0.571 in	14.5 mm	Indicator Internally Driven	PC Pins	DC	85 °C	-40 °C	0.63 in	16 mm	90 dB	Single Tone	13 VDC	9 V	Top	12 VDC	Washable	2.2 kHz	Through Hole	35 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Magnetic 12 V 35mA 2.2kHz 90dB @ 12V, 10cm Through Hole PC Pins
