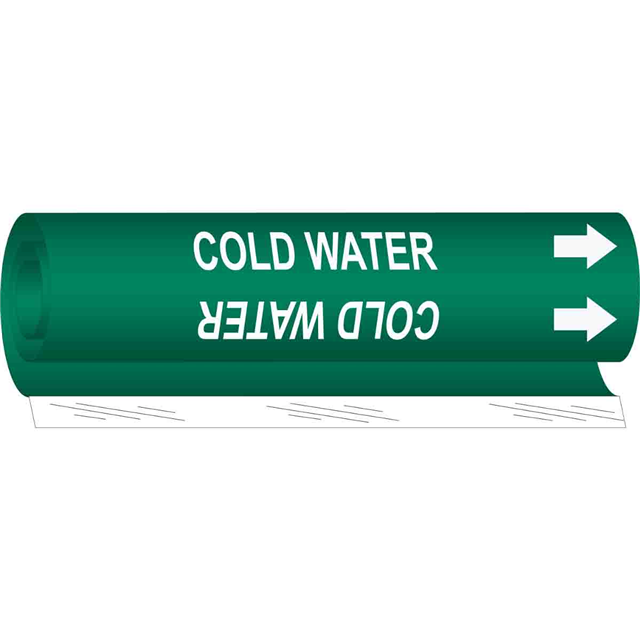

5658-I

Active

BRADY

B689 5658-I WHT/GRN STYLE I

Search across all available documentation for this part.

Active

BRADY

B689 5658-I WHT/GRN STYLE I

Technical Specifications

Parameters and characteristics for this part

Specification	5658-I

Application Specifics	Directionality
Applications	General
Arrangement	Text Only
Color - Background	Green
Color - Legend	White
Features	High Temperature Resistant, Abrasion Resistant, Chemical Resistant
Language	English
Legend (Symbol Only)	Directional Arrow
Legend (Text)	Cold Water
Length	9 "
Length	228.6 mm
Location	Outdoor
Material - Body	Plastic
Outside Pipe Diameter (Max) [diameter]	1.5 "
Outside Pipe Diameter (Max) [diameter]	38.1 mm
Outside Pipe Diameter (Min) [Min] [diameter]	2.375 in
Outside Pipe Diameter (Min) [Min] [diameter]	60.33 mm
Print Type	Pre-Printed
Shape	Rectangle
Width [x]	8 in
Width [x]	203.2 mm

Part	Color - Legend	Language	Material - Body	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Location	Legend (Text)	Arrangement	Width [x]	Width [x]	Print Type	Applications	Length	Length	Features	Legend (Symbol Only)	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Color - Background	Shape	Application Specifics	Outside Pipe Diameter (Min) [Min] [diameter]	Width [y]	Width [y]	Mounting Type	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Width
BRADY 5658-I	White	English	Plastic	1.5 "	38.1 mm	Outdoor	Cold Water	Text Only	8 in	203.2 mm	Pre-Printed	General	9 "	228.6 mm	Abrasion Resistant Chemical Resistant High Temperature Resistant	Directional Arrow	2.375 in	60.33 mm	Green	Rectangle	Directionality
BRADY 5658-O	White	English	Plastic			Outdoor	Cold Water	Symbol and Text			Pre-Printed	Pipe	8 in	203.2 mm	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Directional Arrow	1.375 in		Green	Rectangle	Directionality	34.93 mm	127 mm	5 in	Snap On	12.7 mm	0.5 "
BRADY 5658-II	White	English	Plastic	2.5 "	63.5 mm	Outdoor	Cold Water	Text Only	12 in		Pre-Printed	General	26 in	660.4 mm	Chemical Resistant		7.875 in	200.03 mm	Green	Rectangle	Water Fluids				Snap On			304.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.25
