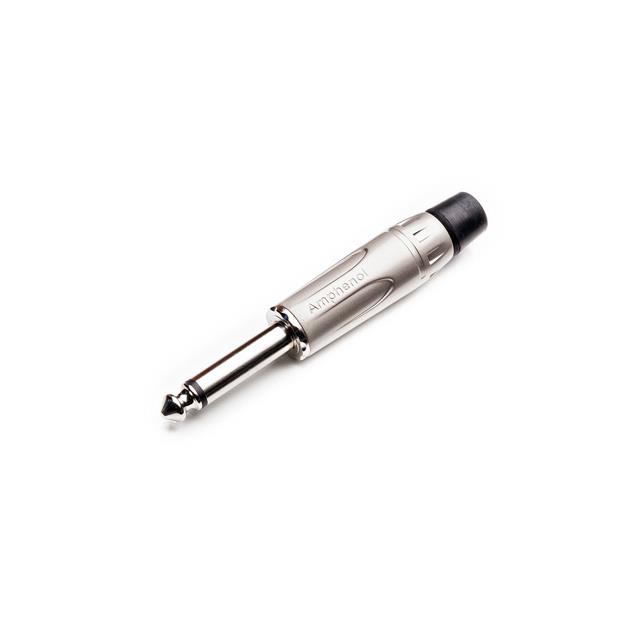

ACPM-KN-AU

Active

AMPHENOL AUDIO

1/4" K SERIES PHONE STR MONO NIC

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

1/4" K SERIES PHONE STR MONO NIC

Technical Specifications

Parameters and characteristics for this part

Specification	ACPM-KN-AU

Actual Diameter [diameter]	0.249 in
Actual Diameter [diameter]	6.32 mm
Body Color	Silver, Gold
Connector Type	Phone Plug
Contact Material	Brass
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Zinc Alloy
Internal Switch(s)	False
Mating Length/Depth	1.19 in
Mating Length/Depth	30.3 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder Eyelet(s)

Part	Body Color	Signal Lines	Connector Type	Contact Material - Plating [custom]	Contact Material	Shielding	Includes	Actual Diameter [diameter]	Actual Diameter [diameter]	Mating Length/Depth	Mating Length/Depth	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Housing Material	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination	Mounting Type	Contact Material - Plating [custom]
AMPHENOL AUDIO ACPM-GB-AU	Black Gold	Mono	Phone Plug	Gold	Brass	Unshielded	1 Connector 1 Handle 1 Insulator Tube	0.249 in	6.32 mm	1.19 in	30.3 mm	2	2	Zinc Alloy	Male	70 °C	-25 °C	10 A	Solder Eyelet(s)	Free Hanging (In-Line)
AMPHENOL AUDIO ACPM-KN-AU	Gold Silver	Mono	Phone Plug	Gold	Brass	Unshielded		0.249 in	6.32 mm	1.19 in	30.3 mm	2	2	Zinc Alloy	Male	70 °C	-25 °C	10 A	Solder Eyelet(s)	Free Hanging (In-Line)
AMPHENOL AUDIO ACPM-RN-AU		Mono	Phone Plug	Gold	Brass	Unshielded	1 Cap 1 Connector 1 Handle 1 Sleeve	0.249 in	6.32 mm	1.2 in	30.6 mm	2	2	Zinc Alloy	Male	70 °C	-25 °C	10 A	Solder Eyelet(s)	Free Hanging (In-Line)
AMPHENOL AUDIO ACPM-GN	Silver	Mono	Phone Plug		Brass	Unshielded	1 Connector 1 Handle 1 Insulator Tube	0.249 in	6.32 mm	1.19 in	30.3 mm	2	2	Zinc Alloy	Male	70 °C	-25 °C	10 A	Solder Eyelet(s)	Free Hanging (In-Line)	Nickel
AMPHENOL AUDIO ACPM-GB	Black Silver	Mono	Phone Plug		Brass	Unshielded	1 Connector 1 Handle 1 Insulator Tube	0.249 in	6.32 mm	1.19 in	30.3 mm	2	2	Zinc Alloy	Male	70 °C	-25 °C	10 A	Solder Eyelet(s)	Free Hanging (In-Line)	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
