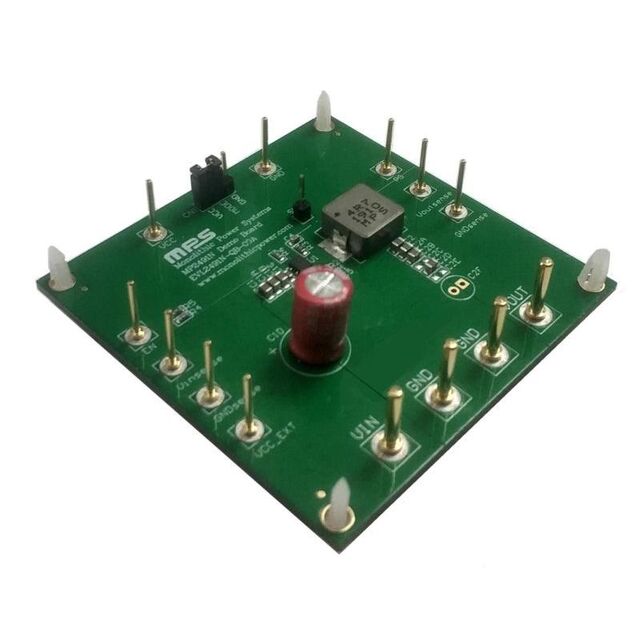

EVL2491N-QB-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MP2491N

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MP2491N

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Voltage - Output	Current - Output	Regulator Topology	Frequency - Switching	Main Purpose	Supplied Contents	Board Type	Output Configuration	Topology	Voltage - Output (Min/Fixed) [Min]	Function	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage - Output (Max) [Max]	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Output Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
MONOLITHIC POWER SYSTEMS (MPS) EVL2491N-QB-00A	MP2491N	16 V	32 V	Non-Isolated	1	5 V	6 A	Buck	540 kHz	DC/DC Step Down	Board(s)	Fully Populated
MONOLITHIC POWER SYSTEMS (MPS) MP2491NGQB-Z							6 A		540 kHz				Positive	Buck	0.5 V	Step-Down	32 V	13-QFN (2.5x3)	30 V	1	Surface Mount	4 V	Adjustable	13-PowerVFQFN	-40 °C	125 ¯C
MONOLITHIC POWER SYSTEMS (MPS) MP2491CGQB-P							6 A		490 kHz				Positive	Buck	0.5 V	Step-Down	32 V	13-QFN (2.5x3)	30 V	1	Surface Mount	4 V	Adjustable	13-PowerVQFN	-40 °C	125 ¯C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.00

General part information

MP2491N - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
