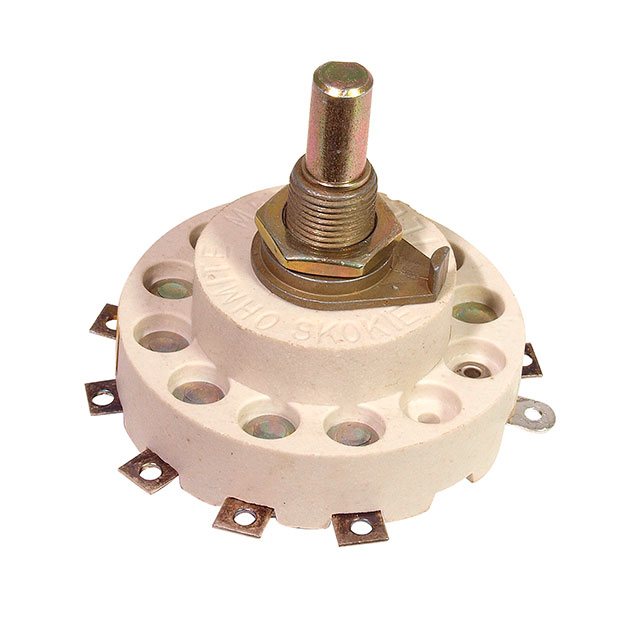

412-8E
ActiveOhmite
SWITCH ROTARY 8POS 50A 300V
Deep-Dive with AI
Search across all available documentation for this part.
412-8E
ActiveOhmite
SWITCH ROTARY 8POS 50A 300V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 412-8E |
|---|---|
| Actuator Length [x] | 28.58 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 6.35 mm |
| Angle of Throw | 30 ° |
| Circuit per Deck | SP8T |
| Contact Material | Silver Alloy |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 50 A |
| Depth Behind Panel | 61.9 mm |
| Index Stops | Fixed |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 8 |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 273.07 | |
| 5 | $ 234.29 | |||
| 10 | $ 219.22 | |||
| 25 | $ 200.65 | |||
| 50 | $ 195.43 | |||
Description
General part information
412-8 Series
Rotary Switch 8 Position SP8T 50A (AC/DC) 300 VAC Panel Mount
