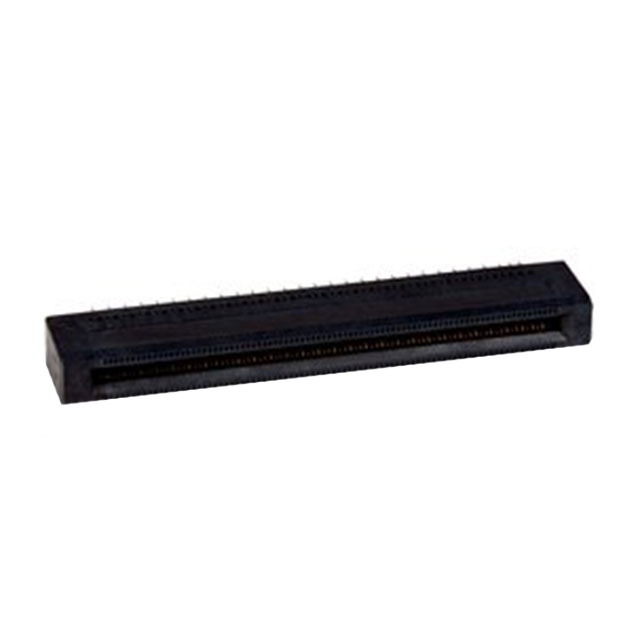

1P00-2000-KR

Obsolete

3M (TC)

CONN MICROTCA FMALE 170POS 0.029

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN MICROTCA FMALE 170POS 0.029

Technical Specifications

Parameters and characteristics for this part

Specification	1P00-2000-KR

Card Thickness	0.055 in
Card Thickness	1.4 mm
Card Type	MicroTCA™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	170
Number of Positions/Bay/Row [custom]	85
Number of Rows	2
Pitch [x]	0.75 mm
Pitch [x]	0.029 in
Read Out	Dual
Termination	Press-Fit

Part	Gender	Number of Positions/Bay/Row [custom]	Mounting Type	Termination	Contact Finish	Card Type	Read Out	Number of Positions	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Material - Insulation	Pitch [x]	Pitch [x]	Color	Number of Rows
3M (TC) 1P00-2000-KR	Female	85	Through Hole	Press-Fit	Gold	MicroTCA™	Dual	170	Copper Alloy	0.76 Ám	30 Áin	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)	0.75 mm	0.029 in	Black	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

170 Position Female Connector MicroTCA™ Gold 0.029" (0.75mm) Black
