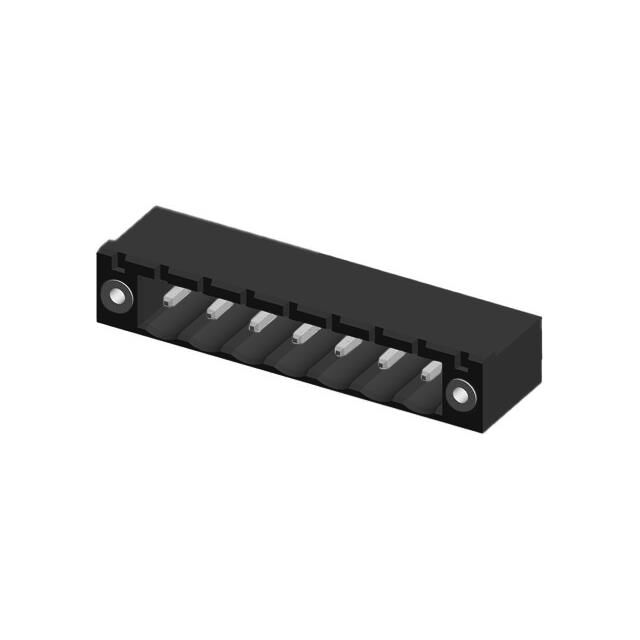

0395255023
ActiveMolex
TERM BLOCK HDR 23POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
0395255023
ActiveMolex
TERM BLOCK HDR 23POS 5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0395255023 |
|---|---|
| Color | Green |
| Contact Material | Brass |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.15 in |
| Contact Tail Length | 3.81 mm |
| Features | Mating Flange |
| Header Orientation | Vertical |
| Insulation Height | 11.94 mm |
| Insulation Height | 0.47 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 23 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 23 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 300 V |
039525 Series
| Part | Positions Per Level | Contact Mating Finish | Operating Temperature [Min] | Operating Temperature [Max] | Header Orientation | Features | Number of Levels | Housing Material | Type | Termination Style | Pitch [x] | Pitch [x] | Color | Voltage - UL | Mounting Type | Contact Material | Material Flammability Rating | Number of Positions | Insulation Height | Insulation Height | Contact Tail Length | Contact Tail Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 8 | Tin | -40 °C | 105 ░C | Vertical | Mating Flange | 1 | Polyamide (PA46) Nylon 4/6 | Header Male Pins Shrouded (4 Side) | Solder | 5 mm | 0.197 in | Black | 300 V | Through Hole | Brass | UL94 V-0 | 8 | 11.94 mm | 0.47 in | 0.15 in | 3.81 mm | |
Molex | 19 | Tin | -40 °C | 105 ░C | Vertical | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | 5 mm | 0.197 in | Green | 300 V | Through Hole | Brass | UL94 V-0 | 19 | 11.94 mm | 0.47 in | 0.15 in | 3.81 mm | ||
Molex | 11 | Tin | -40 °C | 105 ░C | Vertical | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | 5 mm | 0.197 in | Green | 300 V | Through Hole | Brass | UL94 V-0 | 11 | 11.94 mm | 0.47 in | 0.15 in | 3.81 mm | ||
Molex | 14 | Tin | -40 °C | 105 ░C | Vertical | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | 5 mm | 0.197 in | Black | 300 V | Through Hole | Brass | UL94 V-0 | 14 | 11.94 mm | 0.47 in | 0.15 in | 3.81 mm | ||
Molex | 19 | Tin | -40 °C | 105 ░C | Vertical | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | 5 mm | 0.197 in | Black | 300 V | Through Hole | Brass | UL94 V-0 | 19 | 11.94 mm | 0.47 in | 0.15 in | 3.81 mm | ||
Molex | 16 | Tin | -40 °C | 105 ░C | Vertical | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | 5 mm | 0.197 in | Black | 300 V | Through Hole | Brass | UL94 V-0 | 11.94 mm | 0.47 in | 0.15 in | 3.81 mm | 16 | ||
Molex | 17 | Tin | -40 °C | 105 ░C | Vertical | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | 5 mm | 0.197 in | Green | 300 V | Through Hole | Brass | UL94 V-0 | 11.94 mm | 0.47 in | 0.15 in | 3.81 mm | |||
Molex | 23 | Tin | -40 °C | 105 ░C | Vertical | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | 5 mm | 0.197 in | Black | 300 V | Through Hole | Brass | UL94 V-0 | 23 | 11.94 mm | 0.47 in | 0.15 in | 3.81 mm | ||
Molex | 23 | Tin | -40 °C | 105 ░C | Vertical | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | 5 mm | 0.197 in | Green | 300 V | Through Hole | Brass | UL94 V-0 | 23 | 11.94 mm | 0.47 in | 0.15 in | 3.81 mm | ||
Molex | 12 | Tin | -40 °C | 105 ░C | Vertical | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | 5 mm | 0.197 in | Green | 300 V | Through Hole | Brass | UL94 V-0 | 12 | 11.94 mm | 0.47 in | 0.15 in | 3.81 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 600 | $ 4.28 | |
Description
General part information
039525 Series
23 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole
