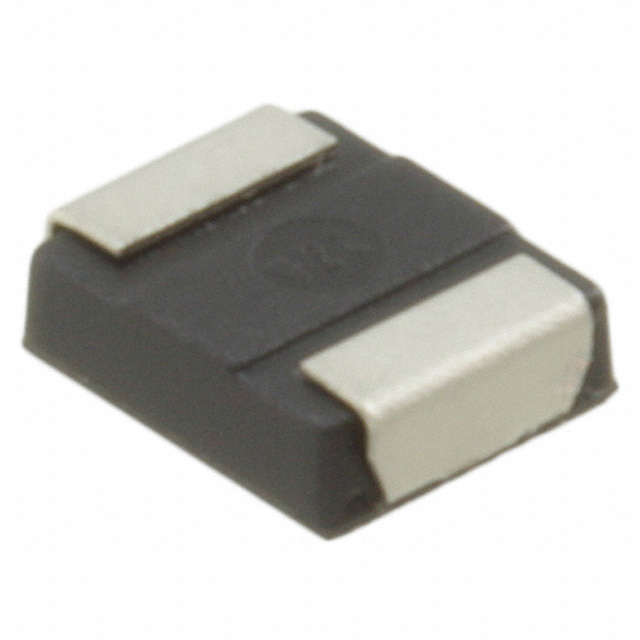

2R5TPG220MUG

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLY 220UF 2.5V 1411

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLY 220UF 2.5V 1411

Technical Specifications

Parameters and characteristics for this part

Specification	2R5TPG220MUG

Capacitance	220 µF
ESR (Equivalent Series Resistance)	30 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Manufacturer Size Code	B15G
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	2.5 V

Part	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Manufacturer Size Code	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Capacitance	Package / Case	Package / Case	Mounting Type	Tolerance	Voltage - Rated	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 2R5TPG220MUG	General Purpose	0.11 in	2.8 mm	0.138 "	3.5 mm	B15G	105 ░C	-55 °C	30 mOhm	220 µF	1411	3528 Metric	Surface Mount	20 %	2.5 V	Molded	1.5 mm	0.059 "
Panasonic Industrial Automation Sales 2R5TPG220M	General Purpose	0.11 in	2.8 mm	0.138 "	3.5 mm	B1G	105 ░C	-55 °C	70 mOhm	220 µF	1411	3528 Metric	Surface Mount	20 %	2.5 V	Molded	1.2 mm		0.047 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

220 µF Molded Tantalum Polymer Capacitor 2.5 V 1411 (3528 Metric) 30mOhm @ 100kHz
