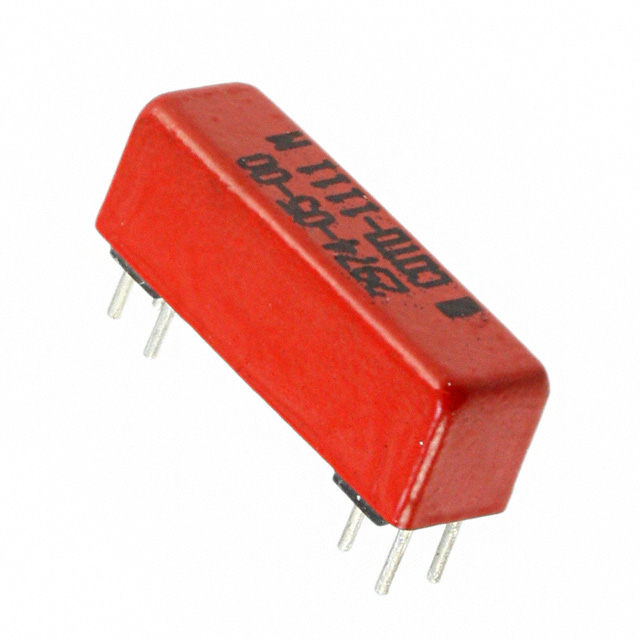

2974-05-00
ObsoleteCoto Technology
RELAY REED SPST 500MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
2974-05-00
ObsoleteCoto Technology
RELAY REED SPST 500MA 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2974-05-00 |
|---|---|
| Coil Current | 21.7 mA |
| Coil Resistance | 230 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 2.5 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 500 µs |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 0.1 ms |
| Switching Voltage | 200 VDC, 200 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2974 Series
RELAY REED SPST 500MA 5V
Documents
Technical documentation and resources
No documents available
