D2E133-DM67-78

Active

ebm-papst Inc.

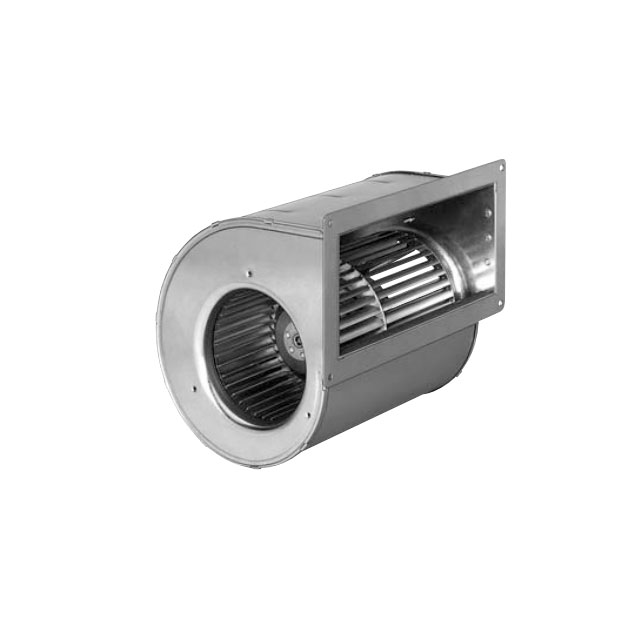

AC BLOWER CENTRIFUGAL BALL BEARING 115V 420CFM 55DB

Deep-Dive with AI

Search across all available documentation for this part.

D2E133-DM67-78

Active

ebm-papst Inc.

AC BLOWER CENTRIFUGAL BALL BEARING 115V 420CFM 55DB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D2E133-DM67-78

Air Flow	420 CFM
Air Flow	11.76 m³/min
Approval Agency	UL, VDE, CSA
Bearing Type	Ball
Fan Type	Blower, Centrifugal
Material - Blade	Steel
Material - Frame	Steel
Noise	55 dB
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Operating Temperature [Min]	0 °C
Power (Watts)	205 W
Termination	2 Wire Leads
Voltage - Rated	115 VAC
Width [y]	270 mm

D2E133 Series

Part	Power (Watts)	Noise	Air Flow	Air Flow	Bearing Type	Termination	Material - Blade	Material - Frame	Voltage - Rated	Fan Type	Width [x]	Weight	Weight	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Approval Agency	Width [y]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	RPM	Features	Static Pressure	Static Pressure	Ingress Protection	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension [y]
ebm-papst Inc. D2E133-BI40-50	110 W	49 dB	5.04 mł/min	180 CFM	Ball	2 Wire Leads	Steel	Steel	230 VAC	Blower Centrifugal	194 mm	2.9 kg	6.5 lbs	180 mm	Rectangular/Rounded	171.5 mm
ebm-papst Inc. D2E133-DM67-78	205 W	55 dB	11.76 m³/min	420 CFM	Ball	2 Wire Leads	Steel	Steel	115 VAC	Blower Centrifugal							CSA UL VDE	270 mm	0 °C	0 °C	40 °C	40 °C
ebm-papst Inc. D2E133-CI33-56	190 W				Ball	4 Wire Leads	Steel	Steel	230 VAC	Blower Centrifugal	168 mm			213 mm	Rectangular/Rounded	203 mm	CCC CE EAC		-25 °C	-25 °C	25 °C	25 °C	2100 RPM	Capacitor Thermal Overload Protector (TOP)	200 Pa	0.803 in H2O	IP44	0.84 A
ebm-papst Inc. D2E133-DM47-A3	195 W				Ball	4 Wire Leads	Steel	Steel	230 VAC	Blower Centrifugal				213 mm	Rectangular/Rounded	203 mm		232 mm	-25 °C	-25 °C	30 °C	30 °C	1550 RPM	Capacitor Thermal Overload Protector (TOP)	100 Pa	0.401 in H2O	IP44	0.85 A
ebm-papst Inc. D2E133-DM17-98	125 W				Ball	Terminal Block	Steel	Steel	230 VAC	Blower Centrifugal							CE	270 mm	-25 °C	-25 °C	65 °C	65 °C	950 RPM	Capacitor Thermal Overload Protector (TOP)			IP44	0.55 A
ebm-papst Inc. D2E133-DM47-23	185 W	55 dB	9.88 mł/min	353 CFM	Ball	2 Wire Leads	Steel	Steel	230 VAC	Blower Centrifugal		4.4 kg	9.7 lbs			204 mm	CCC CE GOST	270 mm	-40 °C	-40 °C	80 C	80 °C	2200 RPM				IP44	0.82 A	133 mm	213 mm
ebm-papst Inc. D2E133-DM27-D8	220 W				Ball	Terminal Block	Steel	Steel	230 VAC	Blower Centrifugal				213 mm	Rectangular/Rounded	203 mm		270 mm	-25 °C	-25 °C	30 °C	30 °C	1900 RPM	Capacitor Thermal Overload Protector (TOP)	150 Pa	0.602 in H2O	IP44	970 mA
ebm-papst Inc. D2E133-DM47-A2	185 W				Ball	4 Wire Leads	Steel	Steel	230 VAC	Blower Centrifugal				213 mm	Rectangular/Rounded	203 mm	CSA UL	232 mm		-25 °C	60 °C		2200 RPM	Capacitor Thermal Overload Protector (TOP)	249.1 Pa	1 in H2O	IP44	0.82 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 306.31
Digikey	Bulk	1	$ 376.20
		10	$ 346.50
		25	$ 324.23

Description

General part information

D2E133 Series

Fan Blower, Centrifugal 115VAC Rectangular/Rounded - 204mm L x 213mm H Ball 420.0 CFM (11.76m³/min) 2 Wire Leads
