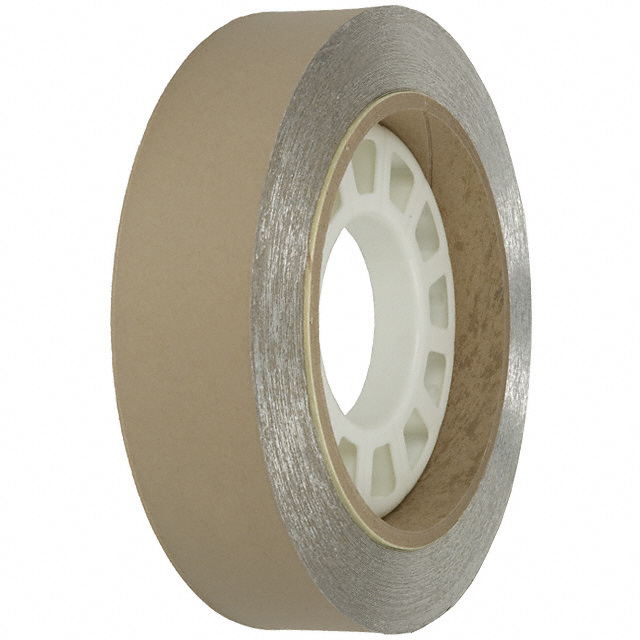

TAPE DAMPING FOIL SILVER 2"X36YD
Deep-Dive with AI
Search across all available documentation for this part.
2552-2"X36YD
Active3M (TC)
TAPE DAMPING FOIL SILVER 2"X36YD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2552-2"X36YD |
|---|---|
| Adhesive | Acrylic |
| Backing, Carrier | Dead Soft, Aluminum |
| Color | Silver |
| Length | 36 yd |
| Length | 32.9 m |
| Length | 108 ft |
| Tape Type | Damping Foil |
| Temperature Range [Max] | 80 °C, 175 °F |
| Temperature Range [Min] | -25 °F, -32 °C |
| Thickness | 0.381 mm |
| Thickness | 0.015 in |
| Thickness | 0.381 mm |
| Thickness - Adhesive | 5 mils |
| Thickness - Adhesive | 0.005 " |
| Thickness - Adhesive | 0.127 mm |
| Thickness - Backing, Carrier | 0.01 " |
| Thickness - Backing, Carrier | 0.254 mm |
| Thickness - Backing, Carrier | 10 mils |
| Usage | Vibration Damping |
| Width [y] | 2 " |
| Width [y] | 50.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 187.78 | |
| 10 | $ 175.27 | |||
| 25 | $ 166.50 | |||
Description
General part information
2552 Series
Damping Foil Tape Acrylic Adhesive Silver 2.00" (50.80mm) X 108' (32.9m) 36 yds
