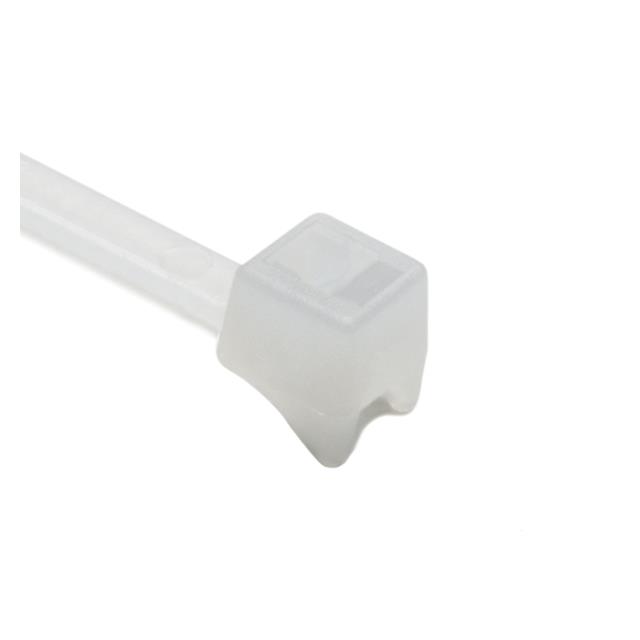

CTT20R9M4

Active

HELLERMANNTYTON

TIE CONTOUR-HEAD NAT 20LBS 3.93"

Search across all available documentation for this part.

Active

HELLERMANNTYTON

TIE CONTOUR-HEAD NAT 20LBS 3.93"

Technical Specifications

Parameters and characteristics for this part

Part	Tensile Strength	Tensile Strength	Wire/Cable Tie Type	Width [x]	Width [x]	Length - Actual	Length - Actual	Length - Actual	Material	Length - Approximate	Mounting Type	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Features
HELLERMANNTYTON CTT20R9M4	9.07 kg	20 lbs	Contour Head Tie	0.098 in	2.5 mm	0.328 ft	3.93 in	100 mm	Polyamide (PA66) Nylon 6/6	4 in	Free Hanging (In-Line)	Natural	13 mm	0.51 in
HELLERMANNTYTON CTT20R0C2	9.07 kg	20 lbs	Locking Standard	0.098 in	2.5 mm				Polyamide (PA66) Nylon 6/6	4 in	Free Hanging (In-Line)	Black	13 mm	0.51 in	4 in	101.6 mm	0.333 '
HELLERMANNTYTON CTT20R0HSC2	9.07 kg	20 lbs	Contour Head Tie	0.098 in	2.5 mm	0.328 ft	3.93 in	100 mm	Polyamide (PA66) Nylon 6/6	4 in	Free Hanging (In-Line)	Black	13 mm	0.51 in				Heat Stabilized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
