M22-2210246

Obsolete

Harwin Inc.

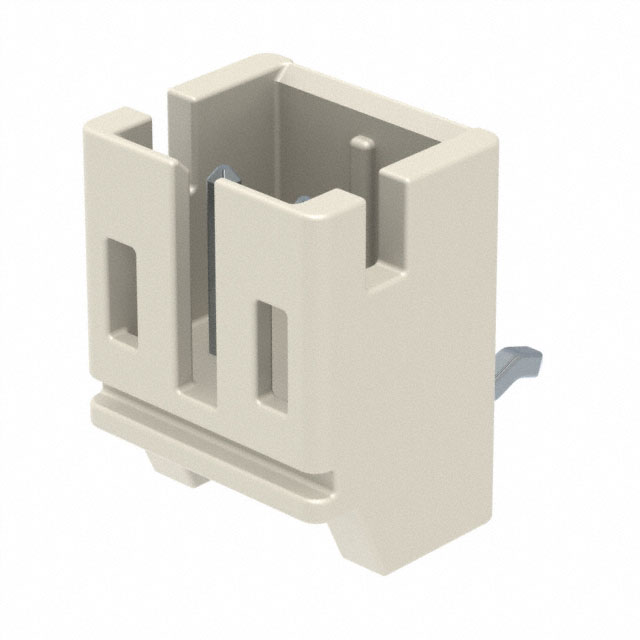

CONN HEADER R/A 2POS 2MM

Search across all available documentation for this part.

Obsolete

Harwin Inc.

CONN HEADER R/A 2POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	M22-2210246

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	100 V

Part	Style	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Fastening Type	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Current Rating (Amps)	Contact Material	Insulation Height	Insulation Height	Voltage Rating	Contact Finish - Post	Number of Rows	Connector Type	Contact Type	Shrouding	Insulation Material
Harwin Inc. M22-2210246	Board to Cable/Wire	0.079 in	2 mm	2	Natural	Kinked Pin Solder	-25 °C	85 °C	0.134 in	3.4 mm	Square	Detent Lock	Through Hole Right Angle	All	UL94 V-0	2 A	Brass	0.195 in	4.95 mm	100 V	Tin	1	Header	Male Pin	Shrouded - 4 Wall	Nylon 6T Polyamide (PA6T)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm)
