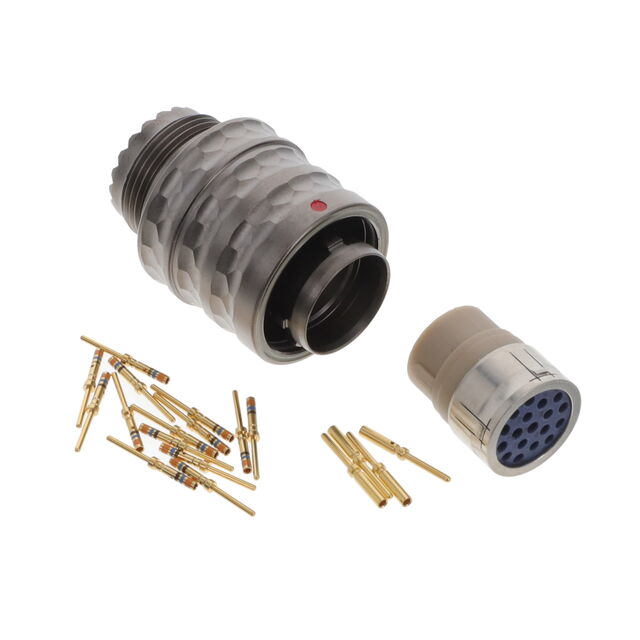

ABTAAT0-HM18PN-0000

Active

ODU

ODU AMC SERIES T BREAK-AWAY PLUG

Search across all available documentation for this part.

Active

ODU

ODU AMC SERIES T BREAK-AWAY PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	ABTAAT0-HM18PN-0000

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A, 5 A
Fastening Type	Push-Pull
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Tin Nickel
Shell Material	Aluminum
Shell Size - Insert	12
Shielding	Shielded
Termination	Crimp
Voltage Rating	50 V

Part	Termination	Orientation	Contact Material	Shell Size - Insert	Ingress Protection	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Fastening Type	Shielding	Connector Type	Current Rating (Amps)	Contact Finish - Mating	Insert Material	Primary Material	Voltage Rating	Number of Positions	Color	Features	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
ODU ABTAAT0-HM18PN-0000	Crimp	A	Copper Alloy	12	IP68 IP69K	Aluminum	-65 ░C	347 °F	Tin Nickel	Push-Pull	Shielded	Male Pins Plug	5 A 7.5 A	Gold	Polyetheretherketone (PEEK)	Metal	50 V	18	Silver	Backshell Coupling Nut	UL94 V-0	Free Hanging (In-Line)	1.27 µm	50 µin
ODU ABTAAT0-H005PN-0000	Crimp	A	Copper Alloy	12	IP68 IP69K	Aluminum	-65 ░C	347 °F	Tin Nickel	Push-Pull	Shielded	Male Pins Plug	13 A	Gold	Polyetheretherketone (PEEK)	Metal	50 V		Silver	Backshell Coupling Nut	UL94 V-0	Free Hanging (In-Line)	1.27 µm	50 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Plug, Male Pins Crimp
