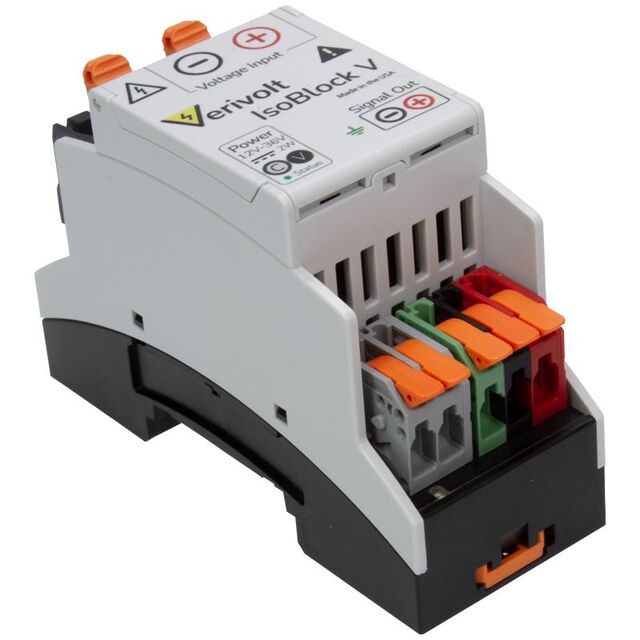

ISOBLOCK V-1C (100V 5V)

Active

Verivolt LLC

TRANSDUCER VOLTAGE 9-28VDC

Search across all available documentation for this part.

Active

Verivolt LLC

TRANSDUCER VOLTAGE 9-28VDC

Technical Specifications

Parameters and characteristics for this part

Part	Response Time	Termination Style	Accuracy	Input Range [Max]	Input Range [Min]	Type	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Isolation	Output	Input Range	Output [Max]	Output [Min]
Verivolt LLC ISOBLOCK V-1C (100V 5V)	2.8 µs	Spring Terminal	0.2 %	100 V	-100 V	Voltage Transducer	DIN Rail	28 V	9 V	70 °C	-25 °C	1500 V	5 V
Verivolt LLC ISOBLOCK V-1C (500V 5V)	2.8 µs	Spring Terminal	0.2 %	500 V	-500 V	Voltage Transducer	DIN Rail	28 V	9 V	70 °C	-25 °C	1500 V	5 V
Verivolt LLC ISOBLOCK V-1C (1000V 5V)	2.8 µs	Spring Terminal	0.2 %	1000 V	-1000 V	Voltage Transducer	DIN Rail	28 V	9 V	70 °C	-25 °C	1500 V	5 V
Verivolt LLC ISOBLOCK V-1C (1500V 10V0.1%)	2.8 µs	Spring Terminal	0.1 %			Voltage Transducer	DIN Rail	28 V	9 V	70 °C	-25 °C	1500 V	10 V	1500 V
Verivolt LLC ISOBLOCK V-1C (100V 10V)	2.8 µs	Spring Terminal	0.2 %	100 V	-100 V	Voltage Transducer	DIN Rail	28 V	9 V	70 °C	-25 °C	1500 V	10 V
Verivolt LLC ISOBLOCK V-1C (500VAC 7VAC)	2.8 µs	Spring Terminal	0.2 %	500 VAC	0 VAC	Voltage Transducer	DIN Rail	28 V	9 V	70 °C	-25 °C	1500 V			7 VAC	0 VAC
Verivolt LLC ISOBLOCK V-1C (1500V 5V)	2.8 µs	Spring Terminal	0.2 %			Voltage Transducer	DIN Rail	28 V	9 V	70 °C	-25 °C	1500 V	5 V	1500 V
Verivolt LLC ISOBLOCK V-1C (500V 10V)	2.8 µs	Spring Terminal	0.2 %	500 V	-500 V	Voltage Transducer	DIN Rail	28 V	8 V	70 °C	-25 °C	1500 V	10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 284.70

General part information

Voltage Transducer ±100V Input ±5V Output 9 ~ 28VDC DIN Rail
