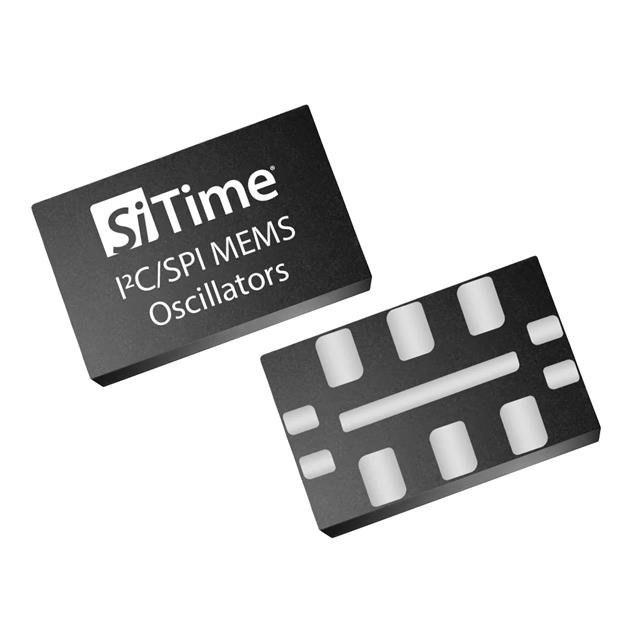

SIT3541AIA2C1331GB40.000000

Active

SiTime

MEMS OSC I2C 40.000000 MHZ LVDS

Search across all available documentation for this part.

Active

SiTime

MEMS OSC I2C 40.000000 MHZ LVDS

Technical Specifications

Parameters and characteristics for this part

Specification	SIT3541AIA2C1331GB40.000000

Absolute Pull Range (APR)	25 ppm
Base Resonator	MEMS
Current - Supply (Disable) (Max) [Max]	61 mA
Current - Supply (Max) [Max]	80 mA
Frequency	40 MHz
Frequency Stability	20 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVDS
Package / Case	10-VQFN Exposed Pad
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	VCXO
Voltage - Supply	3.3 V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Supply (Disable) (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator	Voltage - Supply	Output	Type	Mounting Type	Absolute Pull Range (APR)	Function	Frequency Stability	Frequency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]
SiTime SIT3541AIA2C1331GB40.000000	0.197 in	0.126 "	3.2 mm	5 mm	61 mA	0.035 "	0.9 mm	MEMS	3.3 V	LVDS	VCXO	Surface Mount	25 ppm	Enable/Disable	20 ppm	40 MHz	10-VQFN Exposed Pad	85 °C	-40 °C	80 mA
SiTime SIT3541AIA2C2331GB40.000000	0.197 in	0.126 "	3.2 mm	5 mm	61 mA	0.035 "	0.9 mm	MEMS	3.3 V	LVDS	VCXO	Surface Mount	20 ppm	Enable/Disable	25 ppm	40 MHz	10-VQFN Exposed Pad	85 °C	-40 °C	80 mA
SiTime SIT3541AIA2CF331GB40.000000	0.197 in	0.126 "	3.2 mm	5 mm	61 mA	0.035 "	0.9 mm	MEMS	3.3 V	LVDS	VCXO	Surface Mount	35 ppm	Enable/Disable	10 ppm	40 MHz	10-VQFN Exposed Pad	85 °C	-40 °C	80 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	10	$ 55.78

General part information

40 MHz VCXO LVDS Oscillator 3.3V Enable/Disable 10-VQFN Exposed Pad
