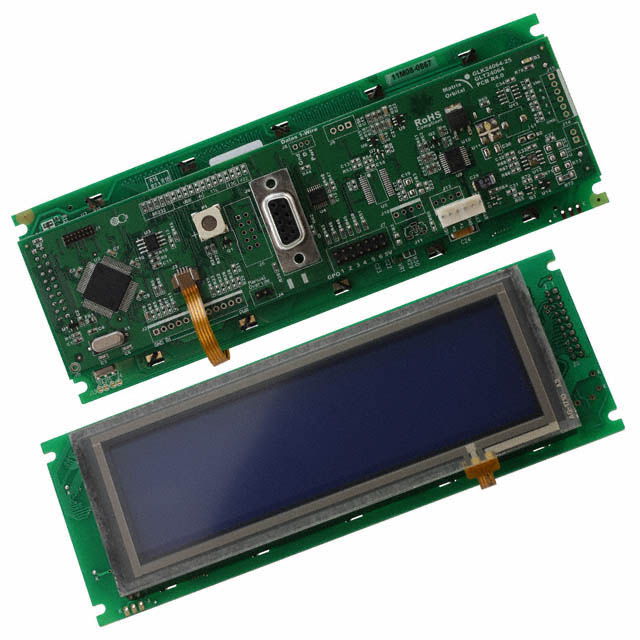

GLT24064-WB

Active

Matrix Orbital

LCD GRAPHIC TOUCH PANEL BLU/WHT

Search across all available documentation for this part.

Active

Matrix Orbital

LCD GRAPHIC TOUCH PANEL BLU/WHT

Technical Specifications

Parameters and characteristics for this part

Part	Interface	Viewing Area [x]	Viewing Area [z]	Display Type	Backlight	Dot Pixels [y]	Dot Pixels [x]	Dot Pitch [y]	Dot Pitch [x]	Dot Size [y]	Dot Size [x]	Touchscreen	Graphics Color	Background Color	Dot Size [custom]	Dot Size [custom]	Display Mode	Viewing Area [y]
Matrix Orbital GLT24064R-1U-FGW-VPT	I2C RS-232 TTL	98 mm	28.4 mm	LCD - Monochrome	LED - White	64	240 pixels	0.39 mm	0.39 mm	0.36 mm	0.36 mm	Resistive	Gray	Gray/White
Matrix Orbital GLT24064R-1U-TCI-VPT
Matrix Orbital GLT24064R-1U-USB-TCI-VPT
Matrix Orbital GLT24064R-1U-USB-WB-VPT
Matrix Orbital GLT24064R-1U-USB-WB	USB	132 mm		Monochrome	LED - White	64	240 pixels	0.53 mm	0.53 mm			Resistive	White	Blue	0.49 mm	0.49 mm	Transmissive	39 mm
Matrix Orbital GLT24064-WB	I2C RS-232 TTL		39.2 mm	Monochrome	LED - White	64	240 pixels	0.53 mm	0.53 mm				White	Blue	0.49 mm	0.49 mm	Transmissive	132.2 mm
Matrix Orbital GLT24064-422-VPT		132 mm		Monochrome		64	240 pixels	0.53 mm	0.53 mm			Resistive	Black	Green	0.49 mm	0.49 mm	Transmissive	39 mm
Matrix Orbital GLT24064-422-FGW-VPT		132 mm		Monochrome	LED - White	64	240 pixels	0.53 mm	0.53 mm			Resistive	Black	White	0.49 mm	0.49 mm	Transmissive	39 mm
Matrix Orbital GLT24064-422-FGW		132 mm		Monochrome	LED - White	64	240 pixels	0.53 mm	0.53 mm			Resistive	Black	White	0.49 mm	0.49 mm	Transmissive	39 mm
Matrix Orbital GLT24064R-1U-422-FGW-VPT	I2C RS-422	93.57 mm		LCD - Monochrome	LED - White	64	240 pixels	0.39 mm	0.39 mm	0.36 mm	0.36 mm	Resistive	Gray	Gray/White			Transflective	24.93 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 189.50

General part information

Graphic LCD Display Module Transmissive White Monochrome I2C, RS-232, TTL 240 x 64

Technical documentation and resources
