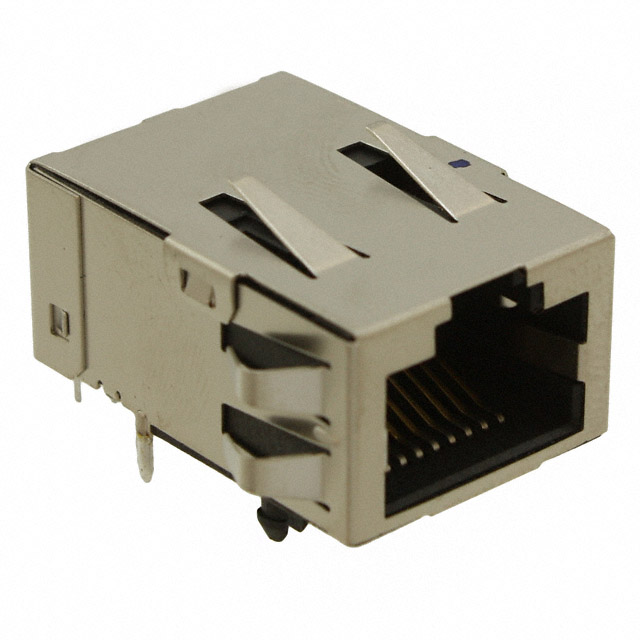

SMJ001-S88N-DS-11
ObsoleteSullins Connector Solutions
CONN JACK 1PORT 1000 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMJ001-S88N-DS-11
ObsoleteSullins Connector Solutions
CONN JACK 1PORT 1000 BASE-T PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMJ001-S88N-DS-11 |
|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Height Above Board [z] | 0.417 in |
| Height Above Board [z] | 10.6 mm |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Orientation | 90 ° |
| Shield Material | Brass |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SMJ001 Series
1 Port RJ45 Through Hole 10/100/1000 Base-T, AutoMDIX
