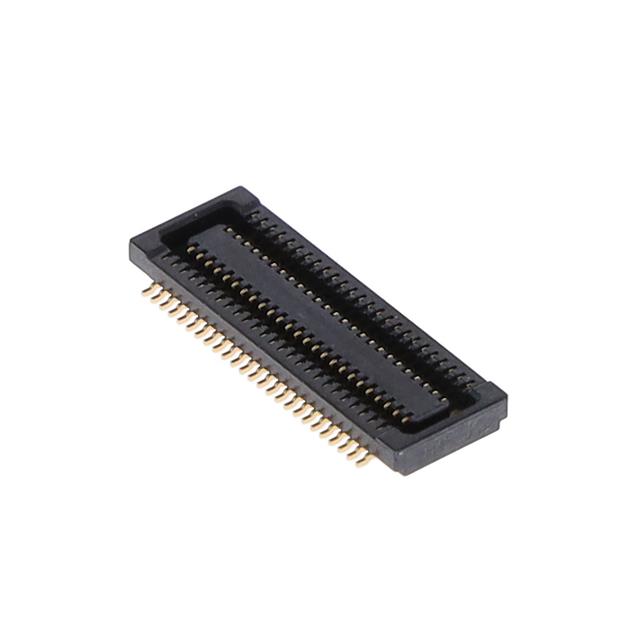

DF23C-50DS-0.5V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 50POS SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF23C-50DS-0.5V(51)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Number of Positions	Height Above Board	Height Above Board
Hirose Electric USA, Inc. DF23C-12DP-0.5V(77)
Hirose Electric USA, Inc. DF23C-14DP-0.5V(73)
Hirose Electric USA, Inc. DF23C-18DS-0.5V(53)	Center Strip Contacts Receptacle	0.057 in	1.45 mm	1.5 mm	Gold	0.5 mm	0.02 in	Surface Mount	2	18
Hirose Electric USA, Inc. DF23C-12DS-0.5V(92)	Center Strip Contacts Receptacle	0.057 in	1.45 mm	1.5 mm	Gold	0.5 mm	0.02 in	Surface Mount	2	12
Hirose Electric USA, Inc. DF23C-14DS-0.5V(51)	Center Strip Contacts Receptacle	0.057 in	1.45 mm	1.5 mm	Gold	0.5 mm	0.02 in	Surface Mount	2	14
Hirose Electric USA, Inc. DF23C-50DS-0.5V(51)	Center Strip Contacts Receptacle	0.057 in	1.45 mm	1.5 mm	Gold	0.5 mm	0.02 in	Surface Mount	2	50
Hirose Electric USA, Inc. DF23C-10DP-0.5V(92)	Outer Shroud Contacts Plug			1.5 mm	Gold	0.5 mm	0.02 in	Surface Mount	2	10	0.047 "	1.2 mm
Hirose Electric USA, Inc. DF23C-30DP-0.5V(51)	Outer Shroud Contacts Plug			1.5 mm	Gold	0.5 mm	0.02 in	Surface Mount	2	30	0.047 "	1.2 mm
Hirose Electric USA, Inc. DF23C-10DP-0.5V(51)	Outer Shroud Contacts Plug			1.5 mm	Gold	0.5 mm	0.02 in	Surface Mount	2	10	0.047 "	1.2 mm
Hirose Electric USA, Inc. DF23C-18DS-0.5V(83)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.74

General part information

50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
