ACJC6H BULK

Active

Amphenol Sine Systems Corp

1/4" STEREO/XLR PCB 6 SKT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

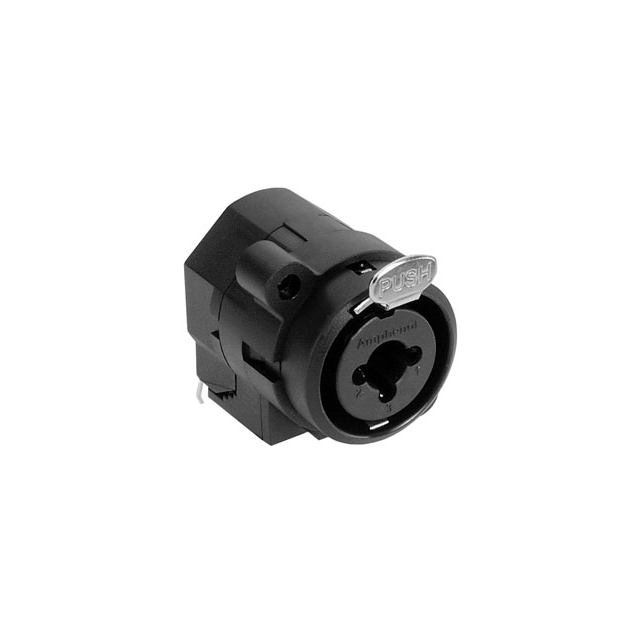

1/4" STEREO/XLR PCB 6 SKT

Technical Specifications

Parameters and characteristics for this part

Specification	ACJC6H BULK

Body Color	Black
Connector Type	Phone Jack, Dual
Contact Material	Bronze, Brass
Contact Material - Plating	Gold, Silver
Current Rating (Amps)	7.5 A
Features	Board Guide
Gender	Female
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	7 Contacts
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Hole Size	0.937 "
Panel Hole Size	23.8 mm
Shielding	Unshielded
Signal Lines	Stereo
Termination	Kinked Pin, Solder

Part	Contact Material - Plating	Panel Hole Size	Panel Hole Size	Current Rating (Amps)	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Color	Contact Material	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Gender	Features	Connector Type	Termination	Signal Lines
Amphenol Sine Systems Corp ACJC6H BULK	Gold Silver	0.937 "	23.8 mm	7.5 A	Unshielded	3	7 Contacts	Black	Brass Bronze	Glass Filled Nylon 6/6 Polyamide (PA66)	70 °C	-25 °C	Panel Mount Right Angle Through Hole	Female	Board Guide	Dual Phone Jack	Kinked Pin Solder	Stereo
Amphenol Sine Systems Corp ACJC6AH BULK	Gold Silver	0.937 "	23.8 mm	7.5 A	Unshielded	3	7 Contacts	Black	Brass Bronze	Glass Filled Nylon 6/6 Polyamide (PA66)	70 °C	-25 °C	Panel Mount Right Angle Through Hole	Female	Board Guide	Dual Phone Jack	Kinked Pin Solder	Stereo
Amphenol Sine Systems Corp ACJC6V BULK	Gold Silver	0.937 "	23.8 mm	7.5 A	Unshielded	3	7 Contacts	Black	Brass Bronze	Glass Filled Nylon 6/6 Polyamide (PA66)	70 °C	-25 °C	Panel Mount Through Hole	Female	Board Guide	Dual Phone Jack	Kinked Pin Solder	Stereo

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 2.40

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Kinked Pin, Solder
