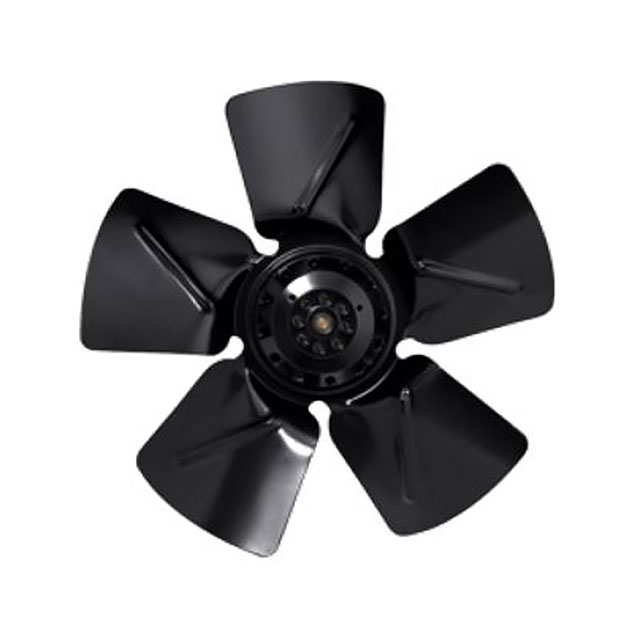

A4E350-AA06-56
Activeebm-papst Inc.
AC FAN AXIAL BALL BEARING 230V 353 X 103.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A4E350-AA06-56
Activeebm-papst Inc.
AC FAN AXIAL BALL BEARING 230V 353 X 103.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A4E350-AA06-56 |
|---|---|
| Approval Agency | UL, CSA, CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.86 A |
| Fan Type | Motorized Impellers |
| Ingress Protection | IP44 |
| Material - Blade | Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 195 W |
| RPM | 1550 RPM |
| Size / Dimension [diameter] | 353 mm |
| Static Pressure | 89.6 Pa |
| Static Pressure | 0.36 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 7 lbs |
| Weight | 3.2 kg |
| Width [x] | 101.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
A4E350 Series
Fan Motorized Impellers 230VAC Round - 353mm Dia Ball 4 Wire Leads
