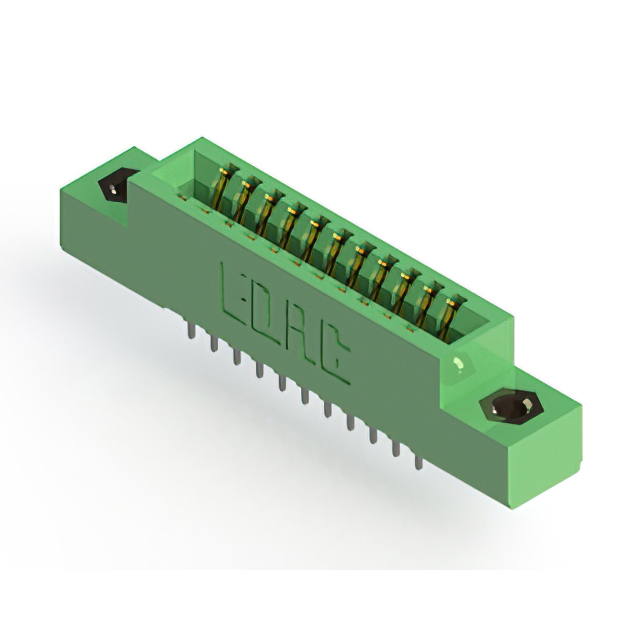

341-022-520-207

Active

EDAC Inc.

2.54MM 22P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

341-022-520-207

Active

EDAC Inc.

2.54MM 22P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-022-520-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	11
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-022 Series

Part	Contact Material	Contact Type	Card Type	Number of Positions	Termination	Flange Feature	Color	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Mounting Type	Read Out	Gender	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-022-500-208	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	22 positions	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole	Dual	Female	Diallyl Phthalate (DAP)	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	2.54 mm	0.1 in	11
EDAC Inc. 341-022-560-201	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	22 positions	Solder		Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Board Edge Straddle Mount	Dual	Female	Polyester Thermoplastic	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	2.54 mm	0.1 in	11	Card Extender
EDAC Inc. 341-022-524-102	Copper Alloy	Semi Bellows	Non Specified - Single Edge	22 positions	Solder	Flush Mount Top Opening Unthreaded	Green	1	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Through Hole	Single	Female	Polyester Thermoplastic	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	2.54 mm	0.1 in	22		3.25 mm	0.128 "
EDAC Inc. 341-022-524-204	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	22 positions	Solder	Flush Mount Top Opening Unthreaded	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole	Dual	Female	Polyester Thermoplastic	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	2.54 mm	0.1 in	11		3.96 mm	0.156 in
EDAC Inc. 341-022-522-104	Copper Alloy	Semi Bellows	Non Specified - Single Edge	22 positions	Solder	Flush Mount Top Opening Unthreaded	Green	1	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Through Hole	Single	Female	Polyester Thermoplastic	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	2.54 mm	0.1 in	22		3.96 mm	0.156 in
EDAC Inc. 341-022-520-207	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	22 positions	Solder	Flush Mount M3 Threaded Insert Top Opening	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole	Dual	Female	Polyester Thermoplastic	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	2.54 mm	0.1 in	11
EDAC Inc. 341-022-556-208	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	22 positions	Solder	4-40 Flush Mount Threaded Insert Top Opening	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole	Dual	Female	Polyester Thermoplastic	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	2.54 mm	0.1 in	11	Card Extender
EDAC Inc. 341-022-522-102	Copper Alloy	Semi Bellows	Non Specified - Single Edge	22 positions	Solder	Flush Mount Top Opening Unthreaded	Green	1	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Through Hole	Single	Female	Polyester Thermoplastic	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	2.54 mm	0.1 in	22		3.25 mm	0.128 "
EDAC Inc. 341-022-500-204	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	22 positions	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole	Dual	Female	Diallyl Phthalate (DAP)	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	2.54 mm	0.1 in	11		3.96 mm	0.156 in
EDAC Inc. 341-022-521-207	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	22 positions	Solder	Flush Mount M3 Threaded Insert Top Opening	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole	Dual	Female	Polyester Thermoplastic	-40 °C	105 ░C	Gold	10 Áin	0.25 Ám	2.54 mm	0.1 in	11
