74AHC1G66GW,165

Obsolete

Freescale Semiconductor - NXP

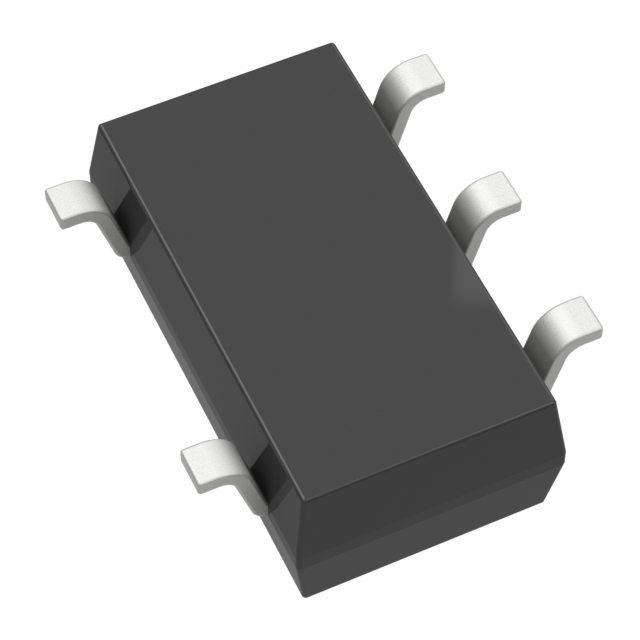

IC SWITCH SPST-NOX1 22OHM 5TSSOP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC SWITCH SPST-NOX1 22OHM 5TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	74AHC1G66GW,165

-3db Bandwidth	280 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	10 pF
Channel Capacitance (CS(off), CD(off)) [custom]	10 pF
Current - Leakage (IS(off)) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max) [Max]	22 Ohm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	SC-70-5, 5-TSSOP, SOT-353
Supplier Device Package	5-TSSOP
Switch Circuit	SPST - NO
Switch Time (Ton, Toff) (Max) [custom]	11 ns
Switch Time (Ton, Toff) (Max) [custom]	11 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	2 V

Part	Current - Leakage (IS(off)) (Max) [Max]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Number of Circuits	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Switch Circuit	Package / Case	On-State Resistance (Max) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Mounting Type	-3db Bandwidth	Multiplexer/Demultiplexer Circuit	Qualification	Grade
Freescale Semiconductor - NXP 74AHC1G66GW,165	100 nA	11 ns	11 ns	5.5 V	2 V	1	-40 °C	125 °C	5-TSSOP	SPST - NO	5-TSSOP SC-70-5 SOT-353	22 Ohm	10 pF	10 pF	Surface Mount	280 MHz	1:1
Freescale Semiconductor - NXP 74AHC1G66GW-Q100H	100 nA	11 ns	11 ns	5.5 V	2 V	1	-40 °C	125 °C	5-TSSOP	SPST - NO	5-TSSOP SC-70-5 SOT-353	22 Ohm	10 pF	10 pF	Surface Mount	280 MHz	1:1	AEC-Q100	Automotive
Freescale Semiconductor - NXP 74AHC1G66GW,125	100 nA	11 ns	11 ns	5.5 V	2 V	1	-40 °C	125 °C	5-TSSOP	SPST - NO	5-TSSOP SC-70-5 SOT-353	22 Ohm	10 pF	10 pF	Surface Mount	280 MHz	1:1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Circuit IC Switch 1:1 22Ohm 5-TSSOP
