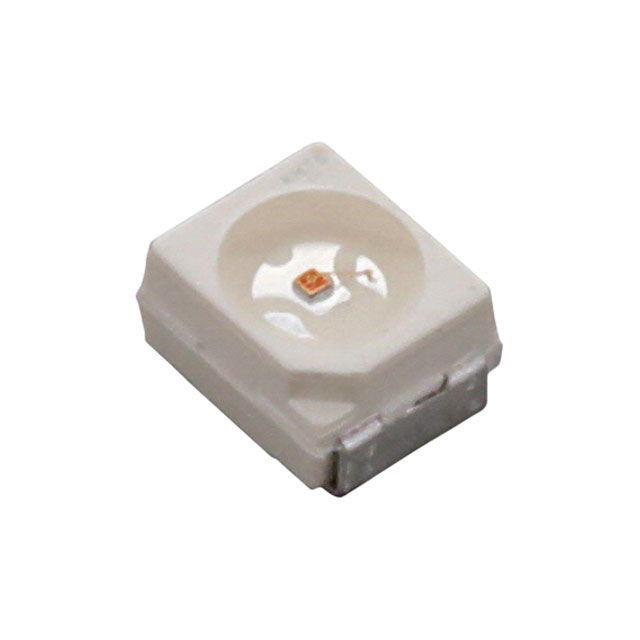

LP T67F-P1R2-35-1-20-R18-Z
LTBams-OSRAM USA INC.
LED TOPLED GREEN 562NM 2PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LP T67F-P1R2-35-1-20-R18-Z
LTBams-OSRAM USA INC.
LED TOPLED GREEN 562NM 2PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LP T67F-P1R2-35-1-20-R18-Z |
|---|---|
| Color | Green |
| Current - Max [Max] | 50 mA |
| Current - Test | 20 mA |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Lumens/Watt @ Current - Test | 7 lm/W |
| Luminous Flux @ Current/Temperature | 0.3 lm |
| Mounting Type | Surface Mount |
| Package / Case | 2-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Thermal Resistance of Package | 420 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength [Max] | 566 nm |
| Wavelength [Min] | 557 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 2000 | $ 0.10 | ||
| 6000 | $ 0.09 | |||
| 10000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
| 100000 | $ 0.08 | |||
Description
General part information
LPT67F Series
LED Lighting Color TOPLED Green 562nm (557nm ~ 566nm) 2-PLCC
