AC01S050WA2R2800

Active

JAE Electronics

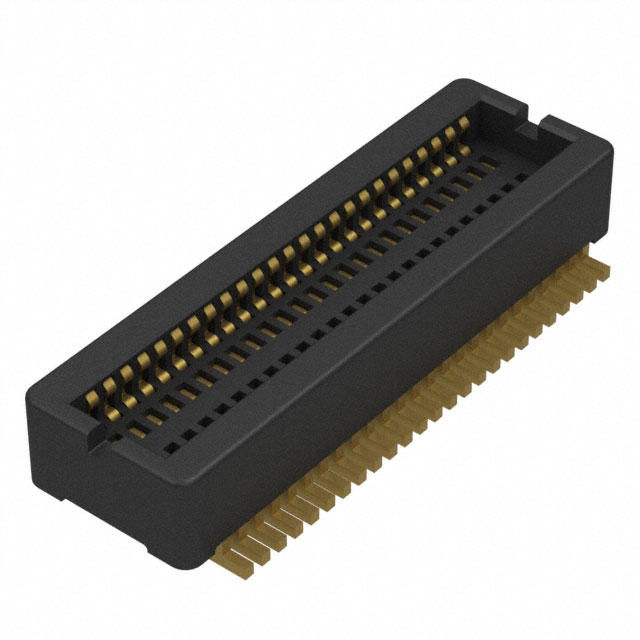

CONN RCPT 50POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AC01S050WA2R2800

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.108 in
Height Above Board	2.75 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Height Above Board	Height Above Board	Mounting Type	Number of Rows	Contact Finish	Number of Positions	Mated Stacking Heights	Pitch [x]	Pitch [x]	Connector Type
JAE Electronics AC01S050WA1R3000	0.089 in	2.26 mm	Surface Mount	2	Gold	50	2.5 mm	0.5 mm	0.02 in	Receptacle Outer Shroud Contacts
JAE Electronics AC01S050WA2R500	0.108 in	2.75 mm	Surface Mount	2	Gold	50	3 mm	0.5 mm	0.02 in	Receptacle Outer Shroud Contacts
JAE Electronics AC01S050WA2R2800	0.108 in	2.75 mm	Surface Mount	2	Gold	50	3 mm	0.5 mm	0.02 in	Receptacle Outer Shroud Contacts
JAE Electronics AC01S050WA1R500	0.089 in	2.26 mm	Surface Mount	2	Gold	50	2.5 mm	0.5 mm	0.02 in	Receptacle Outer Shroud Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2800	$ 1.99

General part information

50 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
