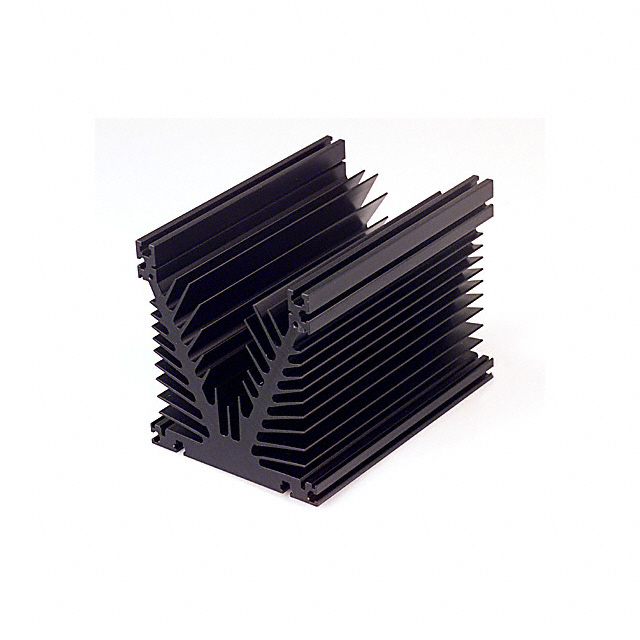

392-180AB

Active

Wakefield-Vette

HEATSINK EXTRUSION IGBT/SSR BLK

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK EXTRUSION IGBT/SSR BLK

Technical Specifications

Parameters and characteristics for this part

Specification	392-180AB

Attachment Method	Press Fit
Fin Height	135.79 mm
Fin Height	5.346 in
Length	7.087 in
Length	180.01 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	Power Modules
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	0.1 °C/W
Thermal Resistance @ Natural	0.43 °C/W
Type	Top Mount, Extrusion
Width [x]	4.921 "
Width [x]	124.99 mm

Part	Shape	Package Cooled	Fin Height	Fin Height	Material	Thermal Resistance @ Natural	Thermal Resistance @ Forced Air Flow	Type	Length	Length	Attachment Method	Material Finish	Width [x]	Width [x]
Wakefield-Vette 392-180AB	Rectangular Fins	Power Modules	135.79 mm	5.346 in	Aluminum	0.43 °C/W	0.1 °C/W	Top Mount Extrusion	7.087 in	180.01 mm	Press Fit	Black Anodized	4.921 "	124.99 mm
Wakefield-Vette 392-180AG	Rectangular Fins	Power Modules	135.79 mm	5.346 in	Aluminum	0.43 °C/W	0.1 °C/W	Top Mount	7.087 in	180.01 mm	Press Fit	Gold Iridite	4.921 "	124.99 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 86.08

General part information

Heat Sink Power Modules Aluminum Top Mount, Extrusion
