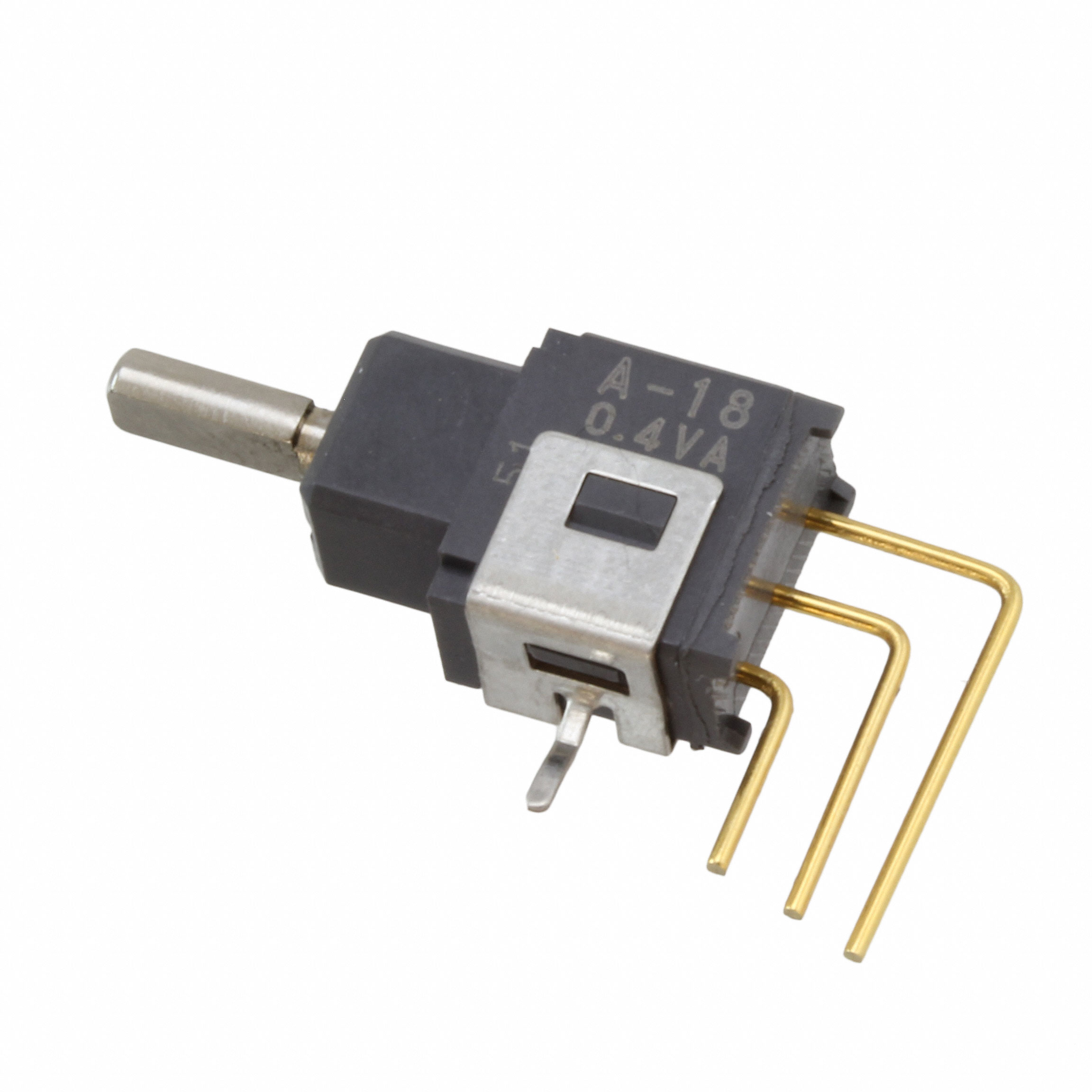

A18HV1

Active

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	A18HV1

Actuator Length [x]	6.3 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Flatted
Bushing Thread	Unthreaded, Square
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Process Sealed
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Actuator Type	Circuit	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Bushing Thread	Features	Illumination	Actuator Length [x]	Actuator Material	Mounting Type	Electrical Life
NKK Switches A18HV1	Flatted	SPDT	PC Pin	28 V	28 V	-30 ░C	85 °C	0.4 VA	Mom-Off-Mom	Unthreaded Square	Process Sealed	Non-Illuminated	6.3 mm	Glass Filled Nylon Polyamide (PA)	Right Angle Through Hole Vertical	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.69

General part information

Toggle Switch SPDT Through Hole, Right Angle, Vertical
