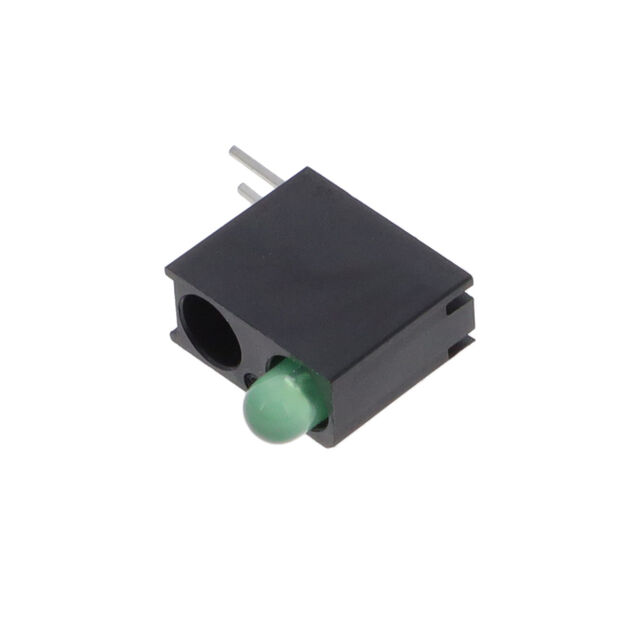

5530120F
ActiveDIALIGHT
LED CBI 3MM BI-LVL GRN/BLANK RA
Deep-Dive with AI
Search across all available documentation for this part.
5530120F
ActiveDIALIGHT
LED CBI 3MM BI-LVL GRN/BLANK RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5530120F |
|---|---|
| Color | Green (x 1), Blank (x 1) |
| Configuration | 2 High |
| Current | 10 mA |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 16 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 45 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 563 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.46 | |
| 10 | $ 0.94 | |||
| 100 | $ 0.68 | |||
| 500 | $ 0.65 | |||
Description
General part information
5530120 Series
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Blank (x 1) Diffused, Tinted 2.1V 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
