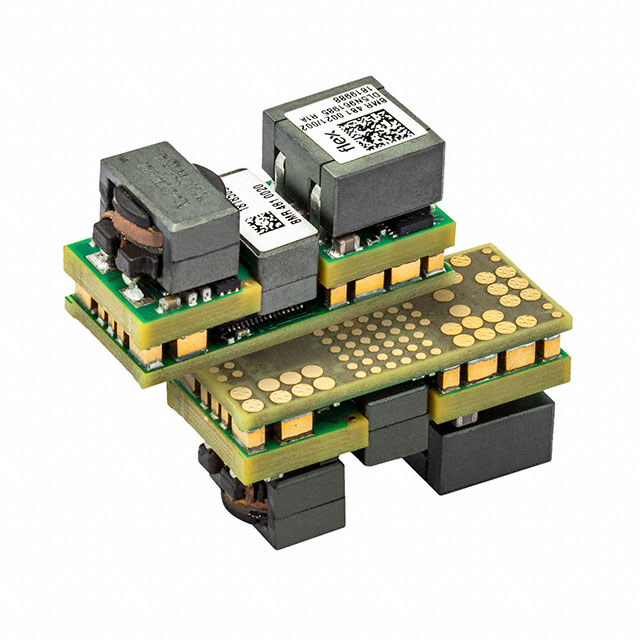

BMR4810021/002
ActiveFlex Power Modules
DC DC CONVERTER 1V 70W
Deep-Dive with AI
Search across all available documentation for this part.
BMR4810021/002
ActiveFlex Power Modules
DC DC CONVERTER 1V 70W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BMR4810021/002 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 70 A |
| Efficiency | 92 % |
| Features | Remote Sense, Adjustable Output, PMBus™, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 20-SMD Module |
| Power (Watts) | 70 W |
| Size / Dimension [x] | 27.7 mm |
| Size / Dimension [x] | 1.09 " |
| Size / Dimension [y] | 0.47 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [z] | 14 mm |
| Size / Dimension [z] | 0.55 in |
| Standard Number | 62368-1 |
| Type | Isolated Module, Digital |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 40 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 67.63 | |
| 5 | $ 67.10 | |||
| 10 | $ 66.57 | |||
| 25 | $ 64.46 | |||
| 50 | $ 61.29 | |||
| Digi-Reel® | 1 | $ 67.63 | ||
| 5 | $ 67.10 | |||
| 10 | $ 66.57 | |||
| 25 | $ 64.46 | |||
| 50 | $ 61.29 | |||
| Tape & Reel (TR) | 100 | $ 52.31 | ||
Description
General part information
BMR481 Series
Isolated Module, Digital DC DC Converter 1 Output 1V 70A 40V - 60V Input
Documents
Technical documentation and resources
No documents available
