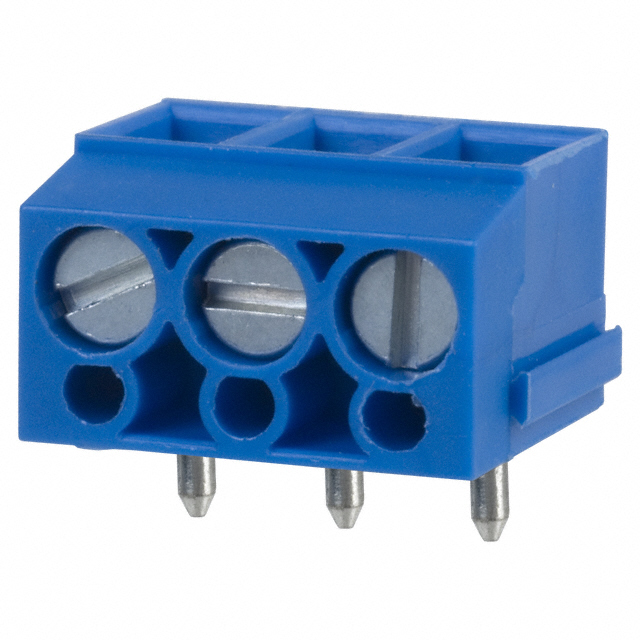

ED105/3DS

Active

On Shore Technology Inc.

TERM BLK 3POS TOP ENTRY 5MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 3POS TOP ENTRY 5MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ED105/3DS

Clamp Material - Plating	Stainless, Steel
Color	Blue
Contact Material - Plating [custom]	Brass
Current	15 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	3
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

Part	Current	Voltage	Number of Levels	Color	Positions Per Level	Features	Torque - Screw	Torque - Screw	Clamp Material - Plating	Housing Material	Screw Thread	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Mating Orientation	Mounting Type	Wire Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating [custom]
On Shore Technology Inc. ED105/3DS	15 A	300 V	1	Blue	3	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Stainless Steel	Polyamide (PA) Nylon	M3	5 mm	0.197 in	14 AWG	22 AWG	Vertical with Board	Through Hole	Screw - Leaf Spring Wire Guard	-30 ░C	105 ░C	Brass
On Shore Technology Inc. ED105/2DS	15 A	300 V	1	Blue	2	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Stainless Steel	Polyamide (PA) Nylon	M3	5 mm	0.197 in	14 AWG	22 AWG	Vertical with Board	Through Hole	Screw - Leaf Spring Wire Guard	-30 ░C	105 ░C	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
