RP131S111B-E2-FE

Active

Nisshinbo Micro Devices Inc

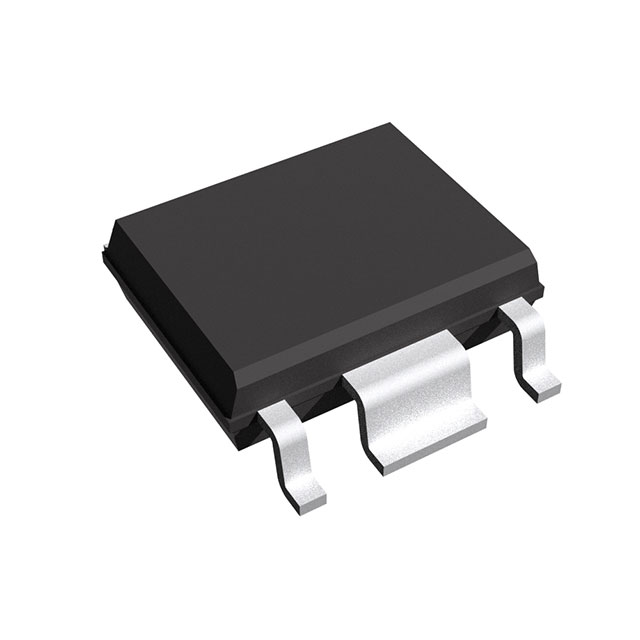

IC REG LINEAR 1.1V 1A 6HSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP131S111B-E2-FE

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 1.1V 1A 6HSOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP131S111B-E2-FE

Control Features	Enable
Current - Output	1 A
Current - Quiescent (Iq)	90 çA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	0.154 in, 3.9 mm
Package / Case [custom]	6-SOIC Variation
Package / Case [custom]	4
Package / Case [custom]	2
Protection Features	Over Current, Over Temperature
PSRR	70 dB
Supplier Device Package	6-HSOP-J
Voltage - Input (Max) [Max]	6.5 V
Voltage - Output (Min/Fixed)	1.1 V
Voltage Dropout (Max) [Max]	1.42 V

RP131 Series

Part	Current - Output	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Package / Case	PSRR	Control Features	Output Type	Output Configuration	Current - Quiescent (Iq)	Supplier Device Package	Number of Regulators	Mounting Type	Voltage - Input (Max) [Max]	Voltage Dropout (Max) [Max]	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case [custom]
Nisshinbo Micro Devices Inc RP131L181D-TR	1 A	Over Current Over Temperature	85 °C	-40 °C	1.8 V	6-XFDFN Exposed Pad	70 dB	Enable	1.81 mOhm	Positive	90 çA	DFN1616-6B	1	Surface Mount	6.5 V	1.1 V
Nisshinbo Micro Devices Inc RP131L121D-TR	1 A	Over Current Over Temperature	85 °C	-40 °C	1.2 V	6-XFDFN Exposed Pad	70 dB	Enable	1.81 mOhm	Positive	90 çA	DFN1616-6B	1	Surface Mount	6.5 V	1.38 V
Nisshinbo Micro Devices Inc RP131S341D-E2-FE	1 A	Over Current Over Temperature	85 °C	-40 °C	3.4 V		60 dB	Enable	1.81 mOhm	Positive	90 çA	6-HSOP-J	1	Surface Mount	6.5 V	0.65 V	6-SOIC Variation	0.154 in 3.9 mm	4	2
Nisshinbo Micro Devices Inc RP131K401D-TR	1 A	Over Current Over Temperature	85 °C	-40 °C	4 V	6-UFDFN Exposed Pad	60 dB	Enable	1.81 mOhm	Positive	90 çA	DFN(PL)1820-6	1	Surface Mount	6.5 V	0.65 V
Nisshinbo Micro Devices Inc RP131S111B-E2-FE	1 A	Over Current Over Temperature	85 °C	-40 °C	1.1 V		70 dB	Enable	1.81 mOhm	Positive	90 çA	6-HSOP-J	1	Surface Mount	6.5 V	1.42 V	6-SOIC Variation	0.154 in 3.9 mm	4	2
Nisshinbo Micro Devices Inc RP131K121D5-TR	1 A	Over Current Over Temperature	85 °C	-40 °C	1.25 V	6-UFDFN Exposed Pad	70 dB	Enable	1.81 mOhm	Positive	90 çA	DFN(PL)1820-6	1	Surface Mount	6.5 V	1.38 V
Nisshinbo Micro Devices Inc RP131H181D-T1-FE	1 A	Over Current Over Temperature	85 °C	-40 °C	1.8 V	SOT-89-5/6	70 dB	Enable	1.81 mOhm	Positive	90 çA	SOT-89-5	1	Surface Mount	6.5 V	1.1 V
Nisshinbo Micro Devices Inc RP131K091B-TR	1 A	Over Current Over Temperature	85 °C	-40 °C	0.9 V	6-UFDFN Exposed Pad	70 dB	Enable	1.81 mOhm	Positive	90 çA	DFN(PL)1820-6	1	Surface Mount	6.5 V	1.5 V
Nisshinbo Micro Devices Inc RP131K311D-TR	1 A	Over Current Over Temperature	85 °C	-40 °C	3.1 V	6-UFDFN Exposed Pad	70 dB	Enable	1.81 mOhm	Positive	90 çA	DFN(PL)1820-6	1	Surface Mount	6.5 V	0.75 V
Nisshinbo Micro Devices Inc RP131K271D-TR	1 A	Over Current Over Temperature	85 °C	-40 °C	2.7 V	6-UFDFN Exposed Pad	70 dB	Enable	1.81 mOhm	Positive	90 çA	DFN(PL)1820-6	1	Surface Mount	6.5 V	0.75 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.41
		2000	$ 0.38
		5000	$ 0.36
		10000	$ 0.35
		25000	$ 0.34

Description

General part information

RP131 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 1A 6-HSOP-J
