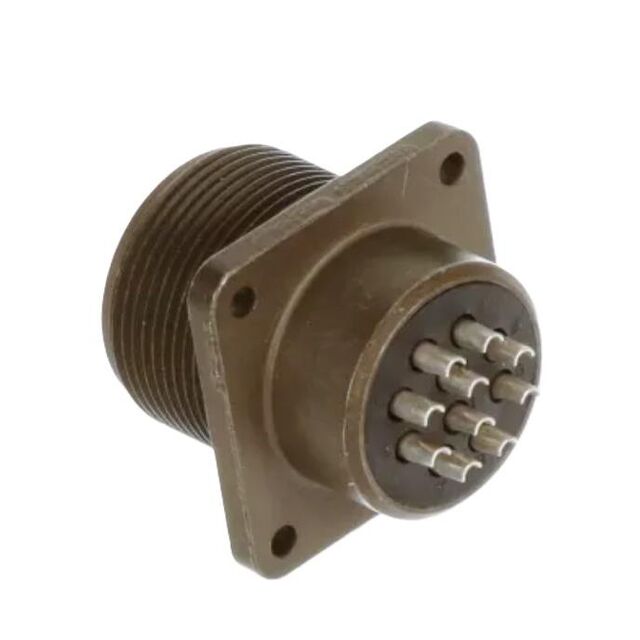

D38999/26WC98SN

Active

Souriau-Sunbank by Eaton

CONN PLUG FMALE 10POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WC98SN

Active

Souriau-Sunbank by Eaton

CONN PLUG FMALE 10POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WC98SN

Applications	Aviation, Marine, Military, Aerospace
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Features	Coupling Nut, Self Locking
Grade	Military
Ingress Protection	IP67 - Dust Tight, Waterproof, Environment Resistant
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

D38999/26WC Series

Part	Note	Mounting Type	Shell Finish	Ingress Protection	Housing Color	Contact Type	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Shell Material	Shielding	Qualification	Shell Size, MIL	Contact Size	Contact Shape	Grade	Insert Material	Orientation	Current Rating (Amps)	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Material	Primary Material	Termination	Contact Finish - Mating	Color	Material Flammability Rating	Contact Size	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert
Souriau-Sunbank by Eaton D38999/26WC4BNL
Souriau-Sunbank by Eaton D38999/26WC4SCL
Souriau-Sunbank by Eaton D38999/26WC98PAL	Contacts Not Included	Free Hanging (In-Line)	Cadmium	Environment Resistant	Olive Drab	Crimp	Plug Housing	10	-65 ░C	347 °F	Coupling Nut	For Male Pins	Aluminum	Shielded	MIL-DTL-38999 Series III	C	20	Circular	Military	Thermoplastic	A
Souriau-Sunbank by Eaton D38999/26WC98SN		Free Hanging (In-Line)	Olive Drab Cadmium	Environment Resistant IP67 - Dust Tight Waterproof			Female Sockets Plug	10	-65 ░C	347 °F	Coupling Nut Self Locking		Aluminum	Shielded	MIL-DTL-38999 Series III	C			Military	Thermoplastic	N	7.5 A	Aerospace Aviation Marine Military	1.27 µm	50 µin	500 VAC	Copper Alloy	Metal	Crimp	Gold	Olive Drab	UL94 V-0
Souriau-Sunbank by Eaton D38999/26WC35AN	Contacts Not Included	Free Hanging (In-Line)	Chromate over Cadmium		Olive Drab	Crimp	Receptacle Housing	6				For Female Sockets	Aluminum Alloy		MIL-DTL-38999 Series III	C			Military		N							Metal					22D	35	13
Souriau-Sunbank by Eaton D38999/26WC8PN		Free Hanging (In-Line)	Olive Drab Cadmium	IP67 - Dust Tight Waterproof			Male Pins Plug	8	-65 ░C	347 °F	Coupling Nut		Aluminum	Shielded	MIL-DTL-38999 Series III	C			Military	Thermoplastic	N	7.5 A	Aviation Marine Military	1.27 µm	50 µin		Copper Alloy	Metal	Crimp	Gold	Olive Drab					13-8
Souriau-Sunbank by Eaton D38999/26WC98PCL	Contacts Not Included	Free Hanging (In-Line)	Cadmium	Environment Resistant	Olive Drab	Crimp	Plug Housing	10	-65 ░C	347 °F	Coupling Nut	For Male Pins	Aluminum	Shielded	MIL-DTL-38999 Series III	C	20	Circular	Military	Thermoplastic	C
Souriau-Sunbank by Eaton D38999/26WC98AN	Contacts Not Included	Free Hanging (In-Line)	Chromate over Cadmium	Environment Resistant	Olive Drab	Crimp	Plug Housing	10	-65 ░C	347 °F	Coupling Nut	For Male Pins	Aluminum Alloy	Shielded	MIL-DTL-38999 Series III	C	20	Circular	Military	Plastic	N
Souriau-Sunbank by Eaton D38999/26WC8PA		Free Hanging (In-Line)	Olive Drab Cadmium	IP67 - Dust Tight Waterproof			Male Pins Plug	8	-65 ░C	347 °F	Coupling Nut		Aluminum	Shielded	MIL-DTL-38999 Series III	C			Military	Thermoplastic	A	7.5 A	Aviation Marine Military	1.27 µm	50 µin		Copper Alloy	Metal	Crimp	Gold	Olive Drab					13-8
Souriau-Sunbank by Eaton D38999/26WC35PAL	Contacts Not Included	Free Hanging (In-Line)	Cadmium	Environment Resistant	Olive Drab	Crimp	Plug Housing	22 positions	-65 ░C	347 °F	Coupling Nut	For Male Pins	Aluminum	Shielded	MIL-DTL-38999 Series III	C		Circular	Military	Thermoplastic	A												22D	35	13

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 51.46
		1	$ 53.97
		10	$ 52.24
		10	$ 49.81
		25	$ 50.61
		25	$ 48.24
		50	$ 49.83
		50	$ 47.50
		100	$ 44.75
		100	$ 46.94
		250	$ 46.27
		250	$ 44.11
		500	$ 42.30
		500	$ 44.37
		1000	$ 41.17
		1000	$ 43.18
	Box	1	$ 29.89
		2	$ 84.84
		10	$ 28.16
		25	$ 26.61
		50	$ 25.23
		100	$ 22.86
	Bulk	1	$ 2541.60

Description

General part information

D38999/26WC Series

10 Position Circular Connector Plug, Female Sockets Crimp
