B13B-XASK-1(LF)(SN)

Active

JST Sales America Inc.

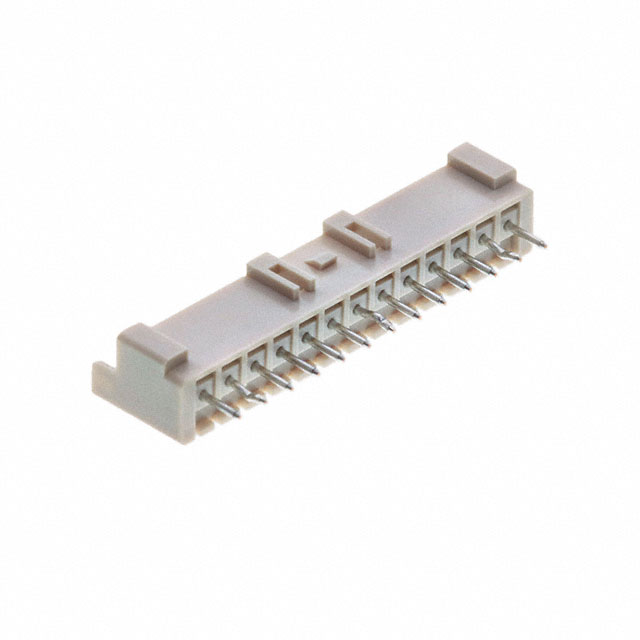

CONN HEADER VERT 13POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 13POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B13B-XASK-1(LF)(SN)

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height [z]	0.346 in
Insulation Height [z]	8.8 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	11.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Voltage Rating	Style	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Shrouding	Current Rating (Amps)	Mated Stacking Heights	Contact Finish - Post	Contact Shape	Insulation Material	Number of Positions	Fastening Type	Contact Material	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions Loaded	Number of Rows	Mounting Type	Termination	Features
JST Sales America Inc. B13B-XASK-1(LF)(SN)	250 VDC	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm	2.5 mm	0.098 in	0.346 in	8.8 mm	Shrouded - 4 Wall	3 A	11.3 mm	Tin	Circular	Polyamide (PA66) Nylon 6/6 Glass Filled	13	Locking Ramp	Copper Alloy	Natural	Male Pin	-25 °C	85 °C	Header	All	1	Through Hole	Press-Fit Solder
JST Sales America Inc. B13B-XASK-1N-A(LF)(SN)	250 VDC	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm	2.5 mm	0.098 in	0.346 in	8.8 mm	Shrouded - 4 Wall	3 A		Tin	Circular	Polyamide (PA66) Nylon 6/6 Glass Filled	13	Locking Ramp	Copper Alloy	Natural	Male Pin	-25 °C	85 °C	Header	All	1	Through Hole	Press-Fit Solder	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 13 position 0.098" (2.50mm)
