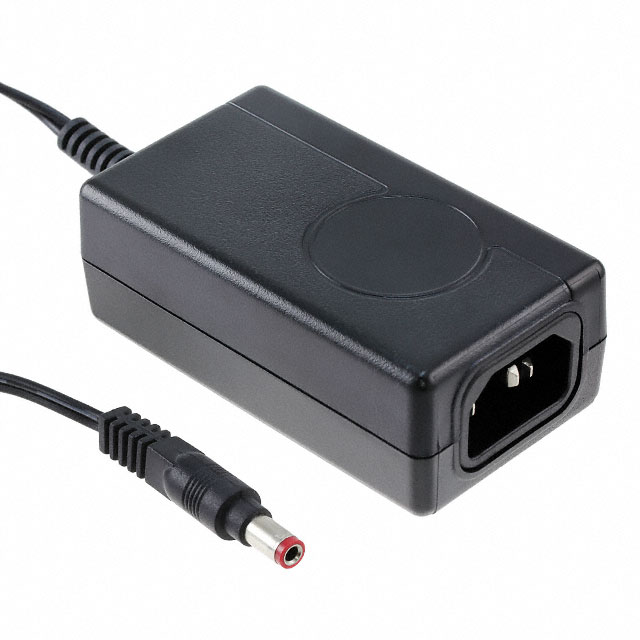

ME10A2403F01

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 24V 12W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 24V 12W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption	Current - Output (Max) [Max]	Voltage - Output	Power (Watts)	Efficiency	Region Utilized	Polarization	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector [diameter]	Output Connector [x]	Output Connector	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Form	Cord Length	Cord Length	Approval Agency
SL POWER / Advanced Energy ME10A2403F01	Medical	1.85 "	3.31 "	1.22 in	47 mm	84 mm	31 mm	100 mW	500 mA	24 V	12 W	Level VI	International	Positive Center	Cord	50 °C	-20 C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	IEC 320-C14	Desktop (Class I)	1.5 m	59 in	CE cURus DEMKO
SL POWER / Advanced Energy ME10A2403N01	Medical	1.85 "	3.31 "	1.22 in	47 mm	84 mm	31 mm	100 mW	500 mA	24 V	12 W	Level VI	International	Positive Center	Cord	50 °C	-20 C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	IEC 320-C8	Desktop (Class II)	1.5 m	59 in	CE cURus DEMKO
SL POWER / Advanced Energy ME10A2403B01	Medical	1.85 "	3.31 "	1.5 "	47 mm	84 mm	38 mm	100 mW	500 mA	24 V	12 W	Level VI	North America	Positive Center	Fixed Blade Multi-Blade	50 °C	-20 C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	NEMA 1-15P Multi-Blade	Wall Mount (Class II)	1.5 m	59 in	CE cURus DEMKO
