LSA29-N1N1-S12

Active

ConductRF

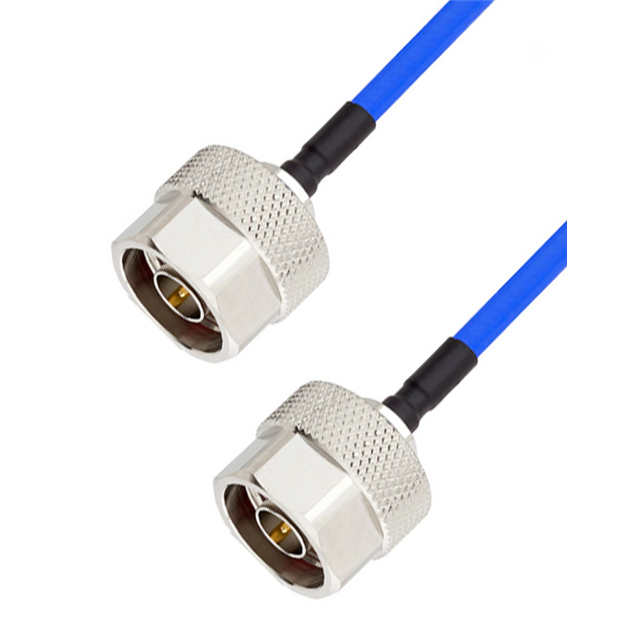

CBL ASSY NTYPE PLUG TO PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSA29-N1N1-S12

Active

ConductRF

CBL ASSY NTYPE PLUG TO PLUG 12"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSA29-N1N1-S12

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	3.58mm OD Coaxial Cable
Color	Blue
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	18 GHz
Length	12 "
Length	304.8 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Impedance	50 Ohms
Style	N-Type to N-Type

LSA29 Series

Part	Color	Connector Impedance	1st Contact Gender	2nd Connector	1st Connector Mounting Type	2nd Contact Gender	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Features	Length [x]	Length [x]	2nd Connector Mounting Type	Overall Impedance	1st Connector	Style	Length	Length	Length	Length [x]	1st Connector Mounting Feature
ConductRF LSA29-S1S1-S16	Blue	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	Male	3.58mm OD Coaxial Cable	-55 °C	125 °C	18 GHz	Shielded	406.4 mm	16 in	Free Hanging (In-Line)	50 Ohms	SMA Plug	SMA to SMA
ConductRF LSA29-N1N1-S48	Blue	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	Male	3.58mm OD Coaxial Cable	-55 °C	125 °C	18 GHz	Shielded			Free Hanging (In-Line)	50 Ohms		N-Type to N-Type	1200 mm	4 ft	48 in
ConductRF LSA29-N1N2-S36	Blue	50 Ohms	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	Male	3.58mm OD Coaxial Cable	-55 °C	125 °C	18 GHz	Shielded			Free Hanging (In-Line)	50 Ohms		N-Type to N-Type	91.44 cm		36 in
ConductRF LSA29-S1S1-S48	Blue	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	Male	3.58mm OD Coaxial Cable	-55 °C	125 °C	18 GHz	Shielded			Free Hanging (In-Line)	50 Ohms	SMA Plug	SMA to SMA	1200 mm	4 ft	48 in
ConductRF LSA29-S1S1-S18	Blue	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	Male	3.58mm OD Coaxial Cable	-55 °C	125 °C	18 GHz	Shielded	457.2 mm		Free Hanging (In-Line)	50 Ohms	SMA Plug	SMA to SMA				457.2 mm
ConductRF LSA29-N1N1-S12	Blue	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	Male	3.58mm OD Coaxial Cable	-55 °C	125 °C	18 GHz	Shielded			Free Hanging (In-Line)	50 Ohms		N-Type to N-Type	304.8 mm		12 "
ConductRF LSA29-N1N1-S36	Blue	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	Male	3.58mm OD Coaxial Cable	-55 °C	125 °C	18 GHz	Shielded			Free Hanging (In-Line)	50 Ohms		N-Type to N-Type	91.44 cm		36 in
ConductRF LSA29-S1S1-S60	Blue	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	Male	3.58mm OD Coaxial Cable	-55 °C	125 °C	18 GHz	Shielded			Free Hanging (In-Line)	50 Ohms	SMA Plug	SMA to SMA	1.5 m	5 ft	5 '
ConductRF LSA29-N1N2-S24	Blue	50 Ohms	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	Male	3.58mm OD Coaxial Cable	-55 °C	125 °C	18 GHz	Shielded			Free Hanging (In-Line)	50 Ohms		N-Type to N-Type	609.6 mm		24 "
ConductRF LSA29-S1S3-S36	Blue	50 Ohms	Female	SMA Plug	Panel Mount	Male	3.58mm OD Coaxial Cable	-55 °C	125 °C	18 GHz	Shielded			Free Hanging (In-Line)	50 Ohms	SMA Jack	SMA to SMA	91.44 cm		36 in		Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 64.18
		5	$ 60.40
		10	$ 57.05
		25	$ 51.33
		50	$ 46.67
		100	$ 44.65
		250	$ 42.79
		500	$ 41.08
		1000	$ 39.49

Description

General part information

LSA29 Series

Cable Assembly Coaxial N-Type to N-Type 3.58mm OD Coaxial Cable 12.00" (304.80mm)
