TR9CG11330YL4IMCFR6B

Active

GlobTek, Inc.

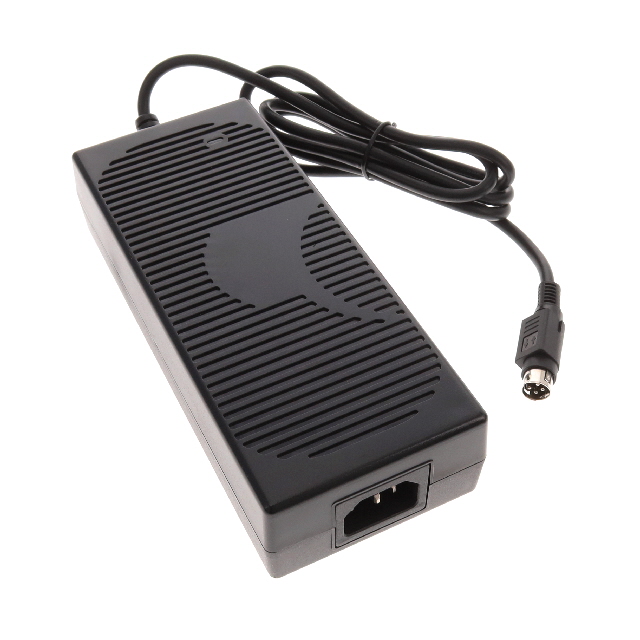

AC/DC DESKTOP ADAPTER 15V 170W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 15V 170W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CG11330YL4IMCFR6B

Applications	Household Appliances, ITE (Commercial), Medical
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	11.3 A
Efficiency	Level VI, CoC Tier 1
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	170 W
Region Utilized	International
Size / Dimension [x]	5.88 in
Size / Dimension [x]	149.4 mm
Size / Dimension [y]	2.47 in
Size / Dimension [y]	62.8 mm
Size / Dimension [z]	34 mm
Size / Dimension [z]	1.34 in
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

Part	No Load Power Consumption [Max]	Standard Number	Cord Length	Cord Length	Region Utilized	Input Type	Voltage - Output	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Form	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Output Connector	Output Connector
GlobTek, Inc. TR9CG11330YL4IMCFR6B	150 mW	60335-1 60601-1 60950-1 62368-1	1.2 m	47.2 in	International	Cord	15 VDC	11.3 A	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical	Desktop (Class I)	170 W	5.88 in	2.47 in	149.4 mm	34 mm	1.34 in	62.8 mm	CoC Tier 1 Level VI	IEC 320-C14	-10 °C	40 °C	4 Pin	Power DIN
GlobTek, Inc. TR9CG11330YL4IMR6B	150 mW	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.2 m	47.2 in	International	Cord	15 VDC	11.33 A	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical	Desktop (Class I)	170 W	6.95 in	2.91 "	176.5 mm	40 mm	1.58 "	74 mm	CoC Tier 2 Level VI	IEC 320-C14	-10 °C	40 °C	4 Pin	Power DIN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.50

General part information

15V 170 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
