Q-23054000D002M

Active

Amphenol Custom Cable

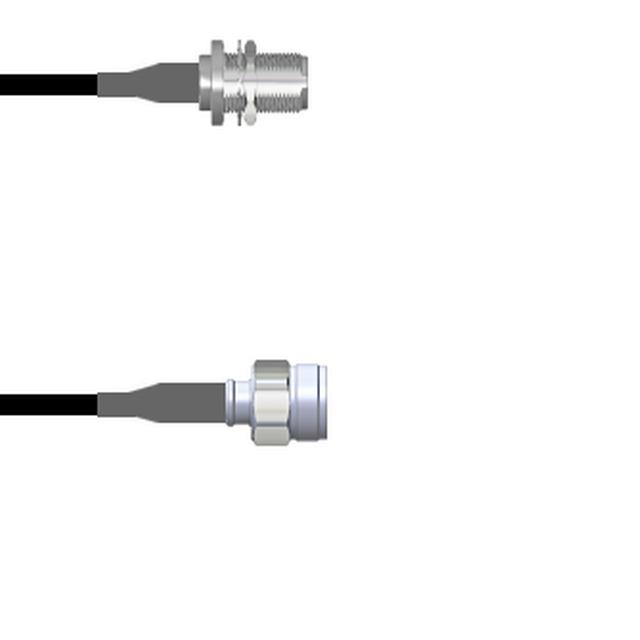

CBL ASSY NTYPE-TNC JACK-PLG 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-23054000D002M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLG 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-23054000D002M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 195
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms

Q-230540 Series

Part	1st Contact Gender	Cable Type	2nd Connector Mounting Type	Length	Length	Length	Features	1st Connector Mounting Feature	Color	1st Connector	Overall Impedance	2nd Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	2nd Connector	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-23054000D002M	Female	LMR 195	Free Hanging (In-Line)	6.6 ft	78.7 in	2 m	Shielded	Bulkhead - Front Side Nut	Black	N-Type Jack	50 Ohms	Male	Panel Mount	6000 MHz	TNC Plug
Amphenol Custom Cable Q-23054000D018i	Female	LMR 195	Free Hanging (In-Line)				Shielded	Bulkhead - Front Side Nut	Black	N-Type Jack	50 Ohms	Male	Panel Mount	6000 MHz	TNC Plug	457.2 mm	457.2 mm
Amphenol Custom Cable Q-23054000D003M	Female	LMR 195	Free Hanging (In-Line)	9.8 '	118.1 in	3 m	Shielded	Bulkhead - Front Side Nut	Black	N-Type Jack	50 Ohms	Male	Panel Mount	6000 MHz	TNC Plug
Amphenol Custom Cable Q-23054000D.25M	Female	LMR 195	Free Hanging (In-Line)				Shielded	Bulkhead - Front Side Nut	Black	N-Type Jack	50 Ohms	Male	Panel Mount	6000 MHz	TNC Plug		250 mm	9.843 "
Amphenol Custom Cable Q-23054000D072i	Female	LMR 195	Free Hanging (In-Line)	6 ft	72 in	1.8 m	Shielded	Bulkhead - Front Side Nut	Black	N-Type Jack	50 Ohms	Male	Panel Mount	6000 MHz	TNC Plug
Amphenol Custom Cable Q-23054000D108i	Female	LMR 195	Free Hanging (In-Line)	9 ft	108 in	2.7 m	Shielded	Bulkhead - Front Side Nut	Black	N-Type Jack	50 Ohms	Male	Panel Mount	6000 MHz	TNC Plug
Amphenol Custom Cable Q-23054000D.75M	Female	LMR 195	Free Hanging (In-Line)		29.53 "	750 mm	Shielded	Bulkhead - Front Side Nut	Black	N-Type Jack	50 Ohms	Male	Panel Mount	6000 MHz	TNC Plug
Amphenol Custom Cable Q-23054000D048i	Female	LMR 195	Free Hanging (In-Line)	4 ft	48 in	1200 mm	Shielded	Bulkhead - Front Side Nut	Black	N-Type Jack	50 Ohms	Male	Panel Mount	6000 MHz	TNC Plug
Amphenol Custom Cable Q-23054000D001M	Female	LMR 195	Free Hanging (In-Line)	3.3 ft	39.4 in	1 m	Shielded	Bulkhead - Front Side Nut	Black	N-Type Jack	50 Ohms	Male	Panel Mount	6000 MHz	TNC Plug
Amphenol Custom Cable Q-23054000D012i	Female	LMR 195	Free Hanging (In-Line)		12 "	304.8 mm	Shielded	Bulkhead - Front Side Nut	Black	N-Type Jack	50 Ohms	Male	Panel Mount	6000 MHz	TNC Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 107.36
		25	$ 100.15
		50	$ 92.93
		100	$ 86.75
		250	$ 81.60

Description

General part information

Q-230540 Series

Cable Assembly Coaxial N-Type to TNC LMR 195 78.7" (2.0m) 6.6'
