HW1P-5Q4-R

Active

IDEC

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 V, 22 MM, 15 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

HW1P-5Q4-R

Active

IDEC

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 V, 22 MM, 15 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW1P-5Q4-R

Current	15 mA
Ingress Protection	IP65
Lamp Color	Red
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Panel Cutout Shape	Round
Ratings	AC/DC
Termination Style	Screw Terminal
Type	LED
Voltage	24 V

HW1P-5Q4 Series

Part	Type	Lamp Color	Panel Cutout Shape	Lens Style	Ratings	Termination Style	Lens Transparency	Ingress Protection	Current	Voltage
IDEC HW1P-5Q4-A	LED	Amber	Round	Round with Domed Top	AC/DC	Screw Terminal	Diffused	IP65	15 mA	24 V
IDEC HW1P-5Q4-R	LED	Red	Round	Round with Domed Top	AC/DC	Screw Terminal	Diffused	IP65	15 mA	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 79.88
		5	$ 69.73
		10	$ 65.76
		25	$ 60.84
		50	$ 57.36
		100	$ 54.07
Newark	Each	1	$ 65.55
		5	$ 63.59
		10	$ 60.30

Description

General part information

HW1P-5Q4 Series

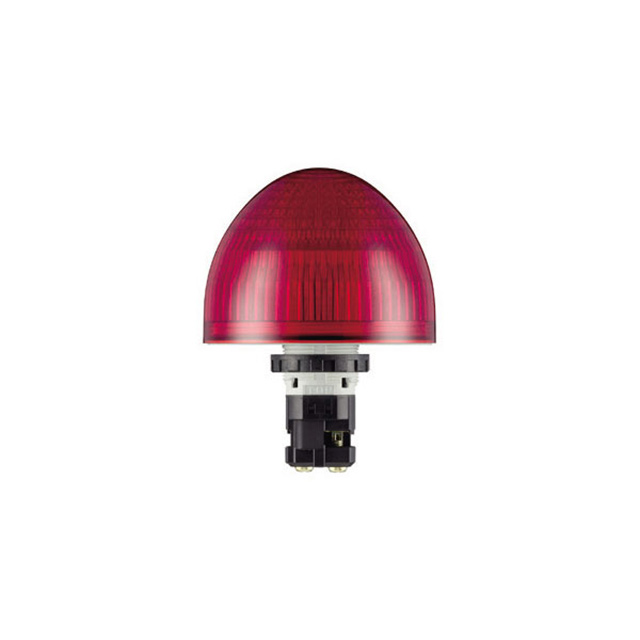

The HW1P-5Q4-R is a red panel-mount LED Pilot Light with jumbo dome lens and round plastic bezel. It offers full voltage illumination circuit and it is suitable for use with the Ø22mm HW series switches and pilot devices.
