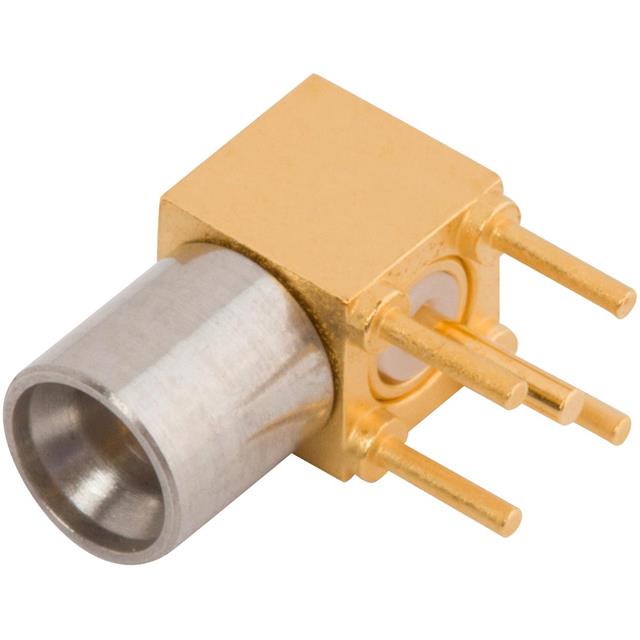

3212-40002

Active

Amphenol SV Microwave

CONN SMPM PLUG R/A 50 OHM PCB

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMPM PLUG R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	3212-40002

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Dielectric Material	Body Material	Connector Type	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Center Contact Material	Connector Style	Features	Number of Ports	Mounting Type	Body Finish	Housing Color	Fastening Type	Impedance	Mating Cycles
Amphenol SV Microwave 3212-40002	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Male Pin Plug	26.5 GHz	Solder	Gold	-55 °C	125 °C	Solder	Beryllium Copper	SMPM	Full Detent	1	Through Hole Right Angle	Gold	Gold	Snap-On	50 Ohms
Amphenol SV Microwave 3212-40003-TD	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Male Pin Plug	26.5 GHz	Solder	Gold	-55 °C	125 °C	Solder	Beryllium Copper	SMPM	Smooth Bore	1	Through Hole Right Angle	Gold	Gold	Snap-On	50 Ohms	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 91.16

General part information

SMPM Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
