EFB0612LA-R00
ActiveDelta Electronics

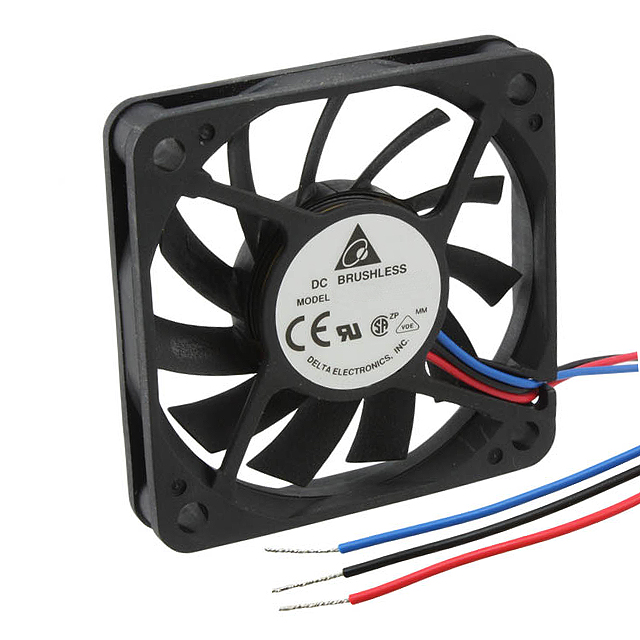

FAN AXIAL 60X10MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
EFB0612LA-R00
ActiveDelta Electronics
FAN AXIAL 60X10MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFB0612LA-R00 |
|---|---|
| Air Flow | 0.375 mł/min |
| Air Flow | 13.4 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 70 mA |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 24.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 840 mW |
| RPM | 3000 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 16.2 Pa |
| Static Pressure | 0.065 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 28.12 g |
| Weight | 0.062 lb |
| Width [y] | 10 mm |
EFB0612 Series
| Part | Current Rating (Amps) | Features | Noise | Width [y] | Weight | Weight | Voltage Range [Min] | Voltage Range [Max] | Air Flow | Air Flow | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Material - Blade | Material - Frame | Termination | Voltage - Rated | RPM | Approval Agency | Bearing Type | Lifetime @ Temp. | Fan Type | Static Pressure | Static Pressure | Power (Watts) | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 0.18 A | Locked Rotor Protection Speed Sensor (Tach) | 36.5 dB(A) | 10 mm | 28.12 g | 0.062 lb | 7 V | 13.8 VDC | 21.2 CFM | 0.594 m³/min | 60 mm | 60 mm | 70 °C | 70 °C | -10 °C | -10 °C | Plastic | Plastic | 3 Wire Leads | 12 VDC | 4800 RPM | CE CSA UL VDE | Ball | 70000 Hrs | Tubeaxial | 42.1 Pa | 0.169 in H2O | 2.16 W | ||
Delta Electronics | Locked Rotor Sensor | 29 dB(A) | 10 mm | 28.12 g | 0.062 lb | 7 V | 13.8 VDC | 15.5 CFM | 0.434 m³/min | 60 mm | 60 mm | 70 °C | 70 °C | -10 °C | -10 °C | Plastic | Plastic | 3 Wire Leads | 12 VDC | 3600 RPM | CE CSA UL VDE | Ball | 70000 Hrs | Tubeaxial | 23.4 Pa | 0.094 in H2O | ||||
Delta Electronics | 70 mA | Locked Rotor Sensor | 24.5 dB(A) | 10 mm | 28.12 g | 0.062 lb | 7 V | 13.8 VDC | 13.4 CFM | 0.375 mł/min | 60 mm | 60 mm | 70 °C | 70 °C | -10 °C | -10 °C | Plastic | Plastic | 3 Wire Leads | 12 VDC | 3000 RPM | CE CSA UL VDE | Ball | 70000 Hrs | Tubeaxial | 16.2 Pa | 0.065 in H2O | 840 mW | ||
Delta Electronics | 0.18 A | 36.5 dB(A) | 10 mm | 28.12 g | 0.062 lb | 7 V | 13.8 VDC | 21.2 CFM | 0.594 m³/min | 60 mm | 60 mm | 70 °C | 70 °C | -10 °C | -10 °C | Plastic | Plastic | 2 Wire Leads | 12 VDC | 4800 RPM | CE CSA UL VDE | Ball | 70000 Hrs | Tubeaxial | 42.1 Pa | 0.169 in H2O | 2.16 W | |||
Delta Electronics | 70 mA | 24.5 dB(A) | 10 mm | 28.12 g | 0.062 lb | 7 V | 13.8 VDC | 13.4 CFM | 0.375 mł/min | 60 mm | 60 mm | 70 °C | 70 °C | -10 °C | -10 °C | Plastic | Plastic | 2 Wire Leads | 12 VDC | 3000 RPM | CE CSA UL VDE | Ball | 70000 Hrs | Tubeaxial | 16.2 Pa | 0.065 in H2O | 840 mW | |||
Delta Electronics | 29 dB(A) | 10 mm | 28.12 g | 0.062 lb | 7 V | 13.8 VDC | 15.5 CFM | 0.434 m³/min | 60 mm | 60 mm | 70 °C | 70 °C | -10 °C | -10 °C | Plastic | Plastic | 2 Wire Leads | 12 VDC | 3600 RPM | CE CSA UL VDE | Ball | 70000 Hrs | Tubeaxial | 23.4 Pa | 0.094 in H2O | |||||
Delta Electronics | 0.2 A | Locked Rotor Protection Speed Sensor (Tach) | 39 dB(A) | 10.7 mm | 17.24 g | 0.038 lb | 5 VDC | 13.2 VDC | 15 CFM | 0.42 m³/min | 60 °C | 60 °C | -10 °C | -10 °C | Plastic | 3 Wire Leads | 12 VDC | 4800 RPM | CE cURus VDE | Ball | 50000 Hrs | Frameless Tubeaxial | 32.1 Pa | 0.129 in H2O | 2.4 W | Round | 56 mm | |||
Delta Electronics | 120 mA | Locked Rotor Protection Speed Sensor (Tach) | 33 dB(A) | 10 mm | 28.12 g | 0.062 lb | 7 V | 13.8 VDC | 18 CFM | 0.504 m³/min | 60 mm | 60 mm | 70 °C | 70 °C | -10 °C | -10 °C | Plastic | Plastic | 3 Wire Leads | 12 VDC | 4200 RPM | CE CSA UL VDE | Ball | 70000 Hrs | Tubeaxial | 32.9 Pa | 0.132 in H2O | 1.44 W | ||
Delta Electronics | Locked Rotor Protection Speed Sensor (Tach) | 29 dB(A) | 10 mm | 28.12 g | 0.062 lb | 7 V | 13.8 VDC | 15.5 CFM | 0.434 m³/min | 60 mm | 60 mm | 70 °C | 70 °C | -10 °C | -10 °C | Plastic | Plastic | 3 Wire Leads | 12 VDC | 3600 RPM | CE CSA UL VDE | Ball | 70000 Hrs | Tubeaxial | 23.4 Pa | 0.094 in H2O |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.75 | |
| 10 | $ 13.13 | |||
| 25 | $ 11.88 | |||
| 50 | $ 10.94 | |||
| 100 | $ 9.82 | |||
| 315 | $ 9.07 | |||
| 630 | $ 8.44 | |||
Description
General part information
EFB0612 Series
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 13.4 CFM (0.375m³/min) 3 Wire Leads
