CP24L-A2BE10Q4S

Active

MEAN WELL USA Inc.

22MM/BL/LIGHT24V/MAINTAINED/1NO

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

22MM/BL/LIGHT24V/MAINTAINED/1NO

Technical Specifications

Parameters and characteristics for this part

Specification	CP24L-A2BE10Q4S

Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Blue
Current Rating (Amps)	8 A, 2.5 A
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP66
Mechanical Life	250000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-On
Termination Style	Spring Terminal
Type	Illuminated, Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	30 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Ingress Protection	Mechanical Life	Termination Style	Voltage Rating - DC	Mounting Type	Color - Actuator/Cap	Electrical Life	Switch Function	Type	Panel Cutout Dimensions [diameter]	Circuit	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Illumination Type, Color
MEAN WELL USA Inc. CP24L-A2BE10Q4S	55 °C	-25 °C	24 VAC/DC	IP66	250000 Cycles	Spring Terminal	30 V	Panel Mount Front	Blue	100000 Cycles	Off-On	Illuminated Standard	22.3 mm	SPST-NO	Button Round	120 V	2.5 A 8 A	Blue LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.93

General part information

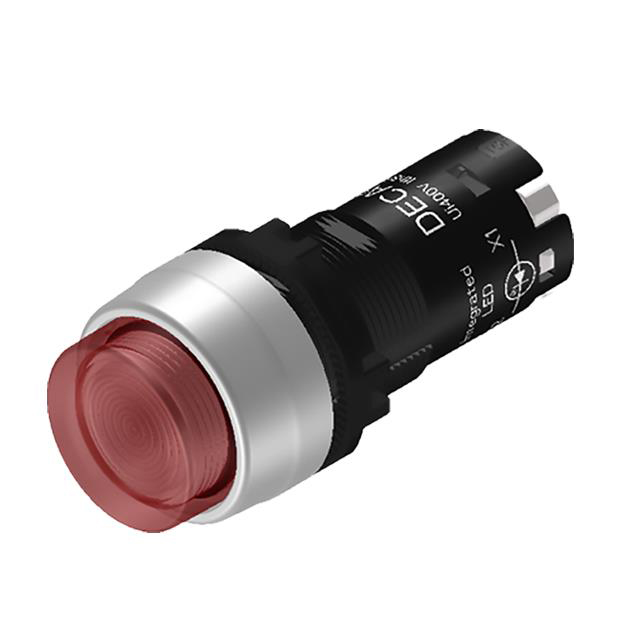

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
