145602020000829

Obsolete

Kyocera AVX

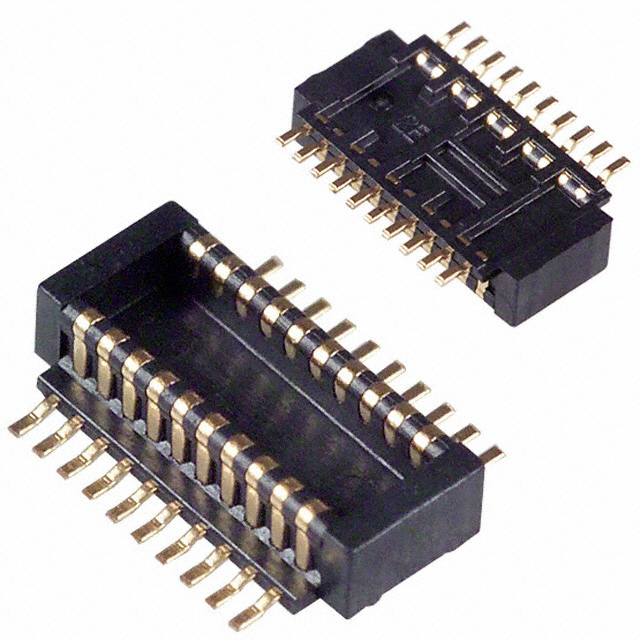

CONN PLUG 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Kyocera AVX

CONN PLUG 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Number of Rows	Mated Stacking Heights	Features	Number of Positions
Kyocera AVX 145602040000829+	0.047 "	1.2 mm	4 Áin	0.1 Ám	Surface Mount	40	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm 1.7 mm 2 mm 2.8 mm
Kyocera AVX 145602030000829H+	0.047 "	1.2 mm			Surface Mount	30	0.016 in	0.4 mm		Outer Shroud Contacts Plug	2	1.5 mm	Board Guide
Kyocera AVX 145602020000829+	0.047 "	1.2 mm	4 Áin	0.1 Ám	Surface Mount	20	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm 1.7 mm 2 mm 2.8 mm
Kyocera AVX 145602020000829	0.047 "	1.2 mm	4 Áin	0.1 Ám	Surface Mount	20	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm 1.7 mm 2 mm 2.8 mm
Kyocera AVX 145602054000829H+	0.047 "	1.2 mm			Surface Mount	54	0.016 in	0.4 mm		Outer Shroud Contacts Plug	2	1.5 mm	Board Guide
Kyocera AVX 145602016000829H+	0.047 "	1.2 mm			Surface Mount		0.016 in	0.4 mm		Outer Shroud Contacts Plug	2	1.5 mm	Board Guide	16
Kyocera AVX 145602070001829+
Kyocera AVX 145602080000829H+	0.047 "	1.2 mm			Surface Mount	80	0.016 in	0.4 mm		Outer Shroud Contacts Plug	2	1.5 mm	Board Guide
Kyocera AVX 145602080000829S+
Kyocera AVX 145602020000829H+	0.047 "	1.2 mm			Surface Mount	20	0.016 in	0.4 mm		Outer Shroud Contacts Plug	2	1.5 mm	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
